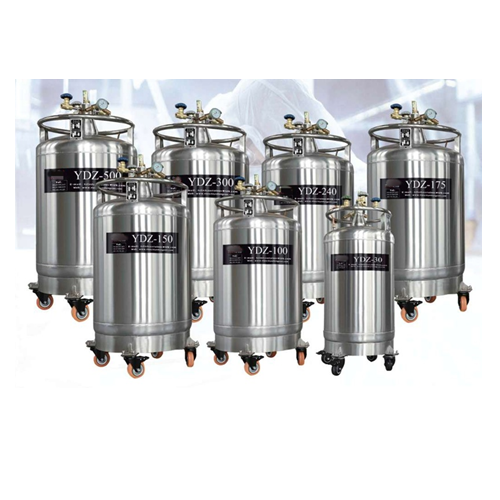

LN2 Supply Container

Product ID: YDZ-15,YDZ-30,YDZ-50,YDZ-100,YDZ-150,YDZ-175,YDZ-200,DZ-240,YDZ-300,YDZ-500,YDZ-1000

Product Description:

 YDZ series self-pressurizing liquid nitrogen container is made of high-quality stainless steel. It is equipped with a self-boosting system, which can generate internal pressure by itself and continuously dis

charge liquid. Remote transmission of data, and it can be manually pressurized and controlled remotely. At present, it is widely used in cryogenic, animal husbandry, medicine, semiconductor, food, low temperature

chemical industry, aerospace and other fields.



Features:

1. 100% of the products are strictly tested at low temperature.

2. Made of high-quality 304 stainless steel for low temperature resistance

3. Equipped with double safety automatic control valve, with double safety protection measures.

4. Unique vacuuming technology ensures extremely low evaporation loss rate.

5. Equipped with a voltage stabilizer system to ensure a stable liquid flow rate

6. High load-bearing casters make movement quick and easy

7. Solenoid valve is optional.

8. Automatic filling system is optional.



Product Parameter:

Models

Geometric Capacity (L)

Effective Capacity (L)

Product size (mm)

Net weight (Kg)

Work pressure (Mpa)

Daily evaporation rate (%)

Output volume (L/Min)

YDZ-15

16.5

15

φ377×830

≈24

<0.1

≤7

≥2

YDZ-30

31.5

30

φ455×980

≈35

<0.1

≤3

≥2

YDZ-50

55

50

φ455×1180

≈45

<0.1

≤2.2

≥4

YDZ-100

110

100

φ606×1300

≈78

<0.1

≤1.4

≥6

YDZ-150

165

150

φ706×1340

≈98

<0.1

≤1.3

≥8

YDZ-175

185

175

φ706×1370

≈108

<0.1

≤1.2

≥8

YDZ-200

220

200

φ706×1450

≈112

<0.1

≤1.1

≥8

YDZ-240

265

240

φ706×1470

≈125

<0.1

≤1.1

≥10

YDZ-300

330

300

φ806×1500

≈180

<0.1

≤1.1

≥10

YDZ-500

550

500

φ1008×1600

≈280

<0.1

≤1.1

≥12

YDZ-1000

1050

1000

φ1210×1970

≈650

<0.1

≤0.8

≥15
