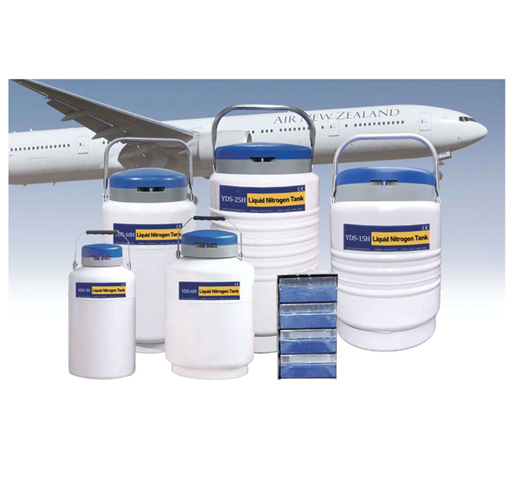

Air Transport Series

Product ID:

Product Description:

The air transport series is suitable for transporting samples in a deep and low temperature environment  (gas  phase  storage,temperature  below-190),which  can  avoid the  danger of liquid  nitrogen  release  during transportation,especially  suitable  for  short-term  air  transportation  such  as  aircraft.There  is  a  liquid  nitrogen absorber inside,which can absorb and store liquid nitrogen.Even if the container is dumped,there will be no overflow of liquid nitrogen;there is also a special stainless steel mesh screen to divide the storage space and the  liquid  nitrogen  absorber,which  can  prevent  the  liquid  nitrogen  absorber  material  from  being  mixed  into the freezer.in the depository.It is mainly suitable for laboratory users and users who need a small amount of samples to be transported in a short time.



Features:

1.Gas phase cryogenic storage.

2.No liquid nitrogen overflow.

3.Rapid liquid nitrogen filling.

4.Straw and cryovial storage options.

5.Sturdy and durable aluminum construction.

6.EU CE certification.

7.Lockable lid.

8.Three-year vacuum warranty.



Product

performance

Model

YDS-3H

YDS-6H-80

YDS-10H-125

YDS-15H-216

YDS-25H-216

Effective volume (L)

1.3

2.9

3.4

6

9

Empty weight(Kg)

3.2

6.5

8.9

13

15

Diameter(mm)

50

80

125

216

216

Outer diameter(mm)

223

300

300

394

394

Height(mm)

435

487

625

540

716

Liquid dailyevaporation (L/d)

0.16

0.20

0.43

1.50

0.89

Staticliquid phase shelf lfe   (d)

20

37

23

10

29

Staticgas phase shelflife (d)

8

14

8

4

10

Round  canister

Outer diameter of canister   (mm)

38

63

97

---

---

Pail height(mm)

120

120

120

---

--

Number of canister (ea)

1

1

1

---

---

The capacity of the thin tube:0.5ml (ea)

132

374

854

---

---

The capacity of the thin tube:0.25ml (ea)

298

837

1940

---

---

Square  canister

Number of canister (ea)

---

---

1

1

1

Box Specifications (mm)

---

---

76x76

134x134

134x134

Square canister layers (ea)

---

---

4

3

5

Ampoule quantity (ea)

---

---

100

300

500

25ml

Number of canisters (ea)

---

---

1

1

1

Number of freezer racks (ea)

---

---

1

1

2

Number of blood bags per layer. (ea)

---

---

3

15

15

Totalnumber of blood bags (ea)

---

---

3

15

30

50ml

Number of canisters (ea)

---

---

1

1

1

Number of freezer racks (ea)

---

---

1

1

1

Number of blood bags per layer. (ea)

---

---

3

15

15

Totalnumber of blood bags (ea)

---

---

3

15

15

Optional  accessorie

Locking cover (ea)

Protective case (ea)

---

---

---

Smart monitor (ea)
