Product ID: YDS-2 YDS-3 YDS-6 YDS-10 YDS-10-80 YDS-16 YDS-16-80(9 slots)YDS-35 YDS-30-80 YDS-35-80 YDS-30-125 YDS-35-125 YDS-47-125(10 slots)
Product Description:

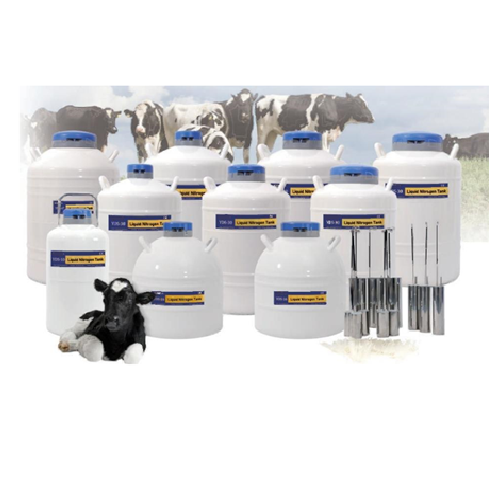

Animal Husbandry Storage YDS series is an economical and practical liquid nitrogen container for breeding industry, mainly designed for long-term static storage of frozen semen and convenient sampling. This series is made of high-quality aviation aluminum and contains multiple layers of super-strong thermal insulation layers, which realizes low volatilization rate of liquid nitrogen and ensures safe, lightweight and efficient storage of samples. And small liquid nitrogen containers are suitable for Users who manually transfer and preserve biological samples, especially designed for mountain users. It has the advantages of small size and light weight, easy to carry, low daily evaporation rate of static liquid nitrogen, economical and practical. This series of products are not only widely used in the storage of frozen semen, vaccines, cells and microorganisms in animal husbandry, but also in machinery manufacturing, electronics, metallurgy, energy and other fields.
Features:
1.CE certification.
2.Five-year vacuum warranty
3.Large capacity straw storage.
4.Number Index Lift Position.
5.Different container diameter options for easy pick and place.
6.High vacuum design and ultra-low liquid nitrogen loss rate.
7.Safety lock cover to prevent unauthorized opening.
8.Equipped with a protective bag to prevent the product from bumping.
Model | YDS-2 | YDS-3 | YDS-6 | YDS-10 | YDS-10-80 | YDS-16 | YDS-16-80(9 slots) |
Capacity(L) | 2.24 | 3.15 | 6.45 | 10.48 | 10.48 | 17.48 | 17.48 |
Caliber (mm) | 35 | 50 | 50 | 50 | 80 | 50 | 80 |
0.D(mm) | 180 | 223 | 280 | 304 | 304 | 440 | 440 |
Height(mm) | 420 | 455 | 525 | 565 | 565 | 525 | 535 |
Static Power Dissipation (L/D) | 0.08 | 0.12 | 0.12 | 0.12 | 0.21 | 0.12 | 0.21 |
Static Storage(D) | 28 | 26 | 53 | 87 | 50 | 145 | 83 |
Optional canister sample storage capacity | |||||||
Canister Number (ea) | 3 | 6 | 6 | 6 | 9 | ||
Canister Diameter (mm) | 26 | 36 | 36 60 | 36 | 36 | ||
Canister Height (mm) | 120 | 120 | 276 120 | 120 | 120 | ||
Straw 0.5ml Single Layer | 90 | 792 | / 2244 | 792 | 1188 | ||
Straw 0.25ml Single Layer | 204 | 1788 | / 5022 | 1788 | 2682 | ||
Straw 0.5ml Double Layer | / | 1284 / | / | / | |||
Straw 0.25ml Double Layer | / | 2832 / | / | / | |||
Cover | ✔ | ✔ | ✔ | ✔ | ✔ |
YDS-30 | YDS-35 | YDS-30-80 | YDS-35-80 | YDS-30-125 | YDS-35-125 | YDS-47-125(10 slots) |
31.50 | 35.20 | 31.50 | 35.20 | 31.50 | 35.20 | 48.50 |
50 | 50 | 80 | 80 | 125 | 125 | 125 |
440 | 440 | 440 | 440 | 440 | 440 | 516 |
720 | 760 | 710 | 710 | 710 | 710 | 790 |
0.12 | 0.12 | 0.21 | 0.21 | 0.35 | 0.35 | 0.42 |
260 | 290 | 150 | 167 | 90 | 100 | 115 |
Optional canister sample storage capacity | ||||||
6 | 6 | 6 | 10 | |||
36 36 | 36 36 60 60 | 36 36 60 60 90 90 | 60 | |||
120 276 | 120 276 120 276 | 120 276 120 276 120 276 | 276 | |||
792 / | 792 / 2244 / | 792 / 2244 / 5124 / | / | |||
1788 / | 1788 / 5022 / | 1788 / 5022 / 11640 / | / | |||
/ 1284 | / 1284 / 3624 | / 1284 / 3624 / 9048 | 6040 | |||
/ 2832 | / 2832 / 8460 | /2832 / 8460 / 20706 | 14100 | |||
✔ | ✔ | ✔ | ✔ |
