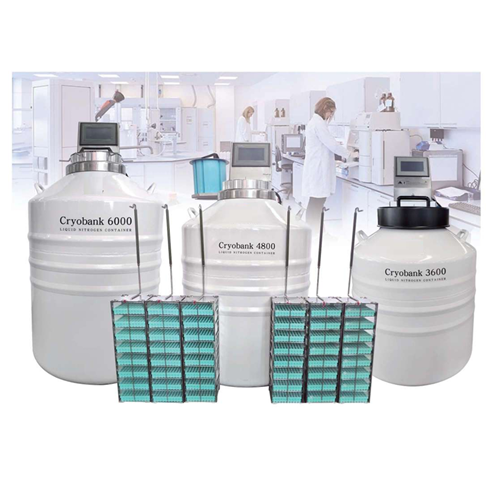

Small gas phase liquid nitrogen container

Product ID: Cryobank 2400 Cryobank 3600 Cryobank 4800 Cryobank 6000

Product Description:

The small gas-phase liquid nitrogen container realizes real-time temperature monitoring, liquid level monitoring, automatic replenishment, remote monitoring and alarm, and automatic backup and storage of monitoring data. Based on the capacitive liquid level sensor, the liquid level can be easily and automatically controlled to achieve the gas phase storage at -190 at the top of the container, completely solving the technical problems of electronic information technology application in the low-temperature environment of -196°.The perfect com-bination of advanced liquid nitrogen container manufacturing technology and intelligent monitoring technology, light weight, small footprint, large capacity, efficient sample access, real-time monitoring of the operating status of liquid nitrogen container, once there is a problem alarm, to ensure the safety of sample storage. lt is mainly suitable for biomedical and sample bank users.



Features:

1.Real-time liquid nitrogen level and temperature monitoring.

2. Remote monitoring and communication functions.

3.Automatic liquid nitrogen injection system, safe and reliable.

4 Compatible with gas and liquid storage modes.

5. Screen saver to extend service life.

6. Remote alarm function (Voice/SMs/Wechat/Email, etc.)

7.Real-time display of liquid nitrogen consumption.

8 Excellent internal temperature uniformity and stability.

9.Hot gas bypass design, reduce internal temperature fluctuations.

10.On-site sound and light alarm function.

11. With fog removal function, convenient sample view.

12.Intelligent local and cloud data backup and export.



Product Parameter:

Model

Cryobank 2400

Cryobank 3600

Cryobank 4800

Cryobank 6000

Maximum storage capacity

Number of square buckets

6

6

6

6

Number of 2.0mlcryogenic vials

2400

3600

4800

6000

Number of layers

4

6

8

10

Performance





Volume(L)

65

115

145

175

Static evaporation rate (L/day)

1.2

1.2

1.5

1.5

Overall dimensions

Caliber    (mm)

216

216

216

216

Height(mm)(Excluding the controller)

785

905

1040

1090

Outer diameter (mm)

678

678

678

678

Net weight(kg)

47

58

63

71
