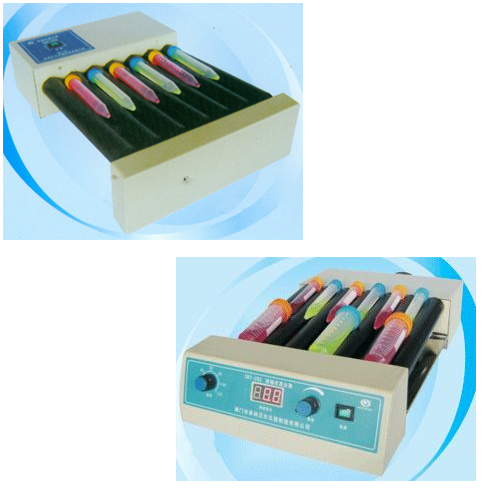

Rolling Mixer

Product ID: MIX-SRT

Summary:

1.         Simultaneously swing and roll, mixing fully and softly with no damage to cells.

2.         Analog fixed speed and digital variable speed.

3.         7 rollers for various tests.

4.         Applicable to sample tubes or bottles of various specs.

5.         Timing and continuous operation.

6.         Apply to 4 cold chamber or 60 incubator with relative humidity of 80%.

7.         Soft high-efficiency 3D mixing is available: swinging and rolling.

    STR-101 analog, with fixed speed at 30rpm, convenience in operation and only switch in need.

    STR-202 Digital, with variable speed at 5~80rpm, timer: 0~120min/continuity.

8.         Especially apply to the mixing of blood, viscous liquid and liquid-solid suspension with no high requirement of ventilation. The soft but high-efficient 3D mixing makes blood sample need no anticoagulant and keeps blood cells from being damaged.

9.         Structurally solid and easy for cleaning with plastic rollers reliable in safely and stainless stell tray to collect accidentally spilled liquid.



Technical parameters:

Mode

MIX-SRT-101

MIX-SRT-202

Number of rollers:

7

7

Speed rpm:

30

10~80

Time control:

0~120min/continuity

0~120min/continuity

Up-and-down swing amplitude mm:

16

16

Maximum bearing capacity Kg:

10

10

Roller spec mm:

240*32

240*32

Exterior dimension mm

265*   405*100

265*455*120   (with stainless tray)

Power supply:

220V50Hz

220V50Hz
