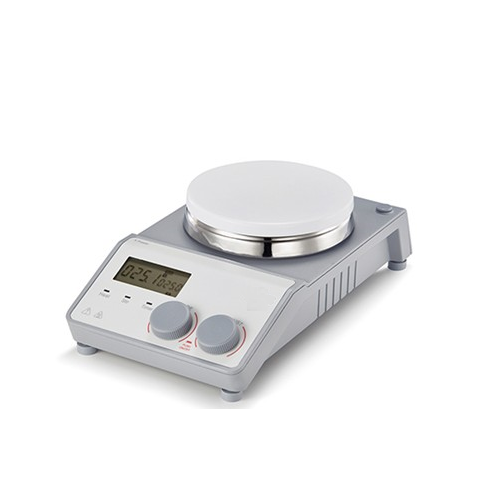

Hotplate Magnetic Stirrer

Hotplate Magnetic Stirrer
Model ID: MS-H-PROT

•   Brushless DC motor is maintenance free and explosion-proof
•   Digital temperature control with max. temperature at 340°C
•   Digital speed control with max. speed up to 1500rpm
•   Max. stirring quantity of H2O at 20L
•   Safety circuits provide overheating protection
•   The “HOT” warning will  flash if the  plate temperature is above 50°C even when the hotplate is turned off
•   Wide range timer function from 1min to 99h59min(MS-H-ProT only)
•   High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
•   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT 1000) with accuracy at ±0.2°C
•   Stainless  steel  work  plate  with  ceramic  coating  provides  good chemical-resistant  performance
•   Remote function provides PC control and data transmission
•   A wide variety of accessories are available


Specifications

MS-H-PROT

Work plate dimension

φ135mm (5 inch)

Work plate material

stainless steel cover with ceramic

Motor type

Brushless DC motor

Motor rating input

18W

Motor rating output

10W

Power

550W

Heating output

500W

Voltage

100-120/200-240V  50/60Hz

Stirring positions

1

Max. stirring quantity [H2O]

20L

Max. magnetic bar[length]

80mm

Speed range

100-1500rpm
  resolution±1rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room   temp.-340°C, increment 1°C

Temperature control accuracy

±1°C(<100°C)
  ±1%(>100°C)

Over temperature protection

420°C

Temperature display accuracy

±0.1°C

External temperature sensor

PT1000 (accuracy ±0.2)

"Hot" warning

50°C

Timer function

1min to 99h 59min

Data connector

RS232

Protection class

IP42

Dimension [WxDxH]

160×280×85mm

Weight

2.8kg

Permissible ambient temperature   and humidity

5-40°C, 80%RH
