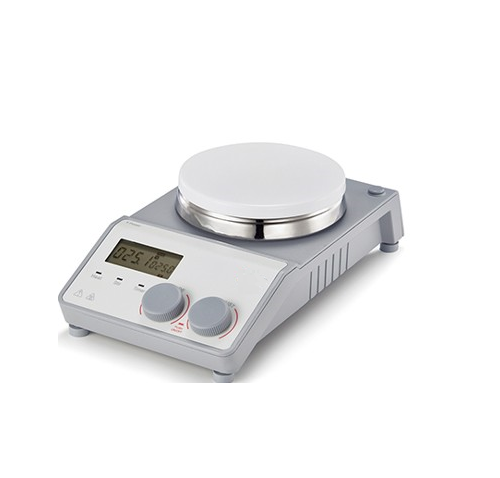

Hotplate Magnetic Stirrer

Hotplate Magnetic Stirrer
Model ID: MS-H-PRO+

•   Brushless DC motor is maintenance free and explosion-proof
•   Digital temperature control with max. temperature at 340°C
•   Digital speed control with max. speed up to 1500rpm
•   Max. stirring quantity of H2O at 20L
•   Safety circuits provide overheating protection
•   The “HOT” warning will  flash if the  plate temperature is above 50°C even when the hotplate is turned off
•   High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
•   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT 1000) with accuracy at ±0.2°C
•   Stainless  steel  work  plate  with  ceramic  coating  provides  good chemical-resistant  performance
•   Remote function provides PC control and data transmission
•   A wide variety of accessories are available



Specifications

MS-H-PRO+

Work plate   dimension

φ135mm (5   inch)

Work plate   material

stainless   steel cover with ceramic

Motor type

Brushless   DC motor

Motor   rating input

18W

Motor rating   output

10W

Power

550W

Heating   output

500W

Voltage

100-120/200-240V   50/60Hz

Stirring   positions

1

Max.   stirring quantity [H2O]

20L

Max.   magnetic bar[length]

80mm

Speed range

100-1500rpm   resolution±1rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room temp.-340°C, increment 1°C

Temperature   control accuracy

±1°C(<100°C)
  ±1%(>100°C)

Over temperature   protection

420°C

Temperature   display accuracy

±0.1°C

External   temperature sensor

PT1000   (accuracy ±0.2)

"Hot"   warning

50°C

Data   connector

RS232

Protection   class

IP42

Dimension   [WxDxH]

160×280×85mm

Weight

2.8kg

Permissible   ambient temperature and humidity

5-40°C, 80%RH
