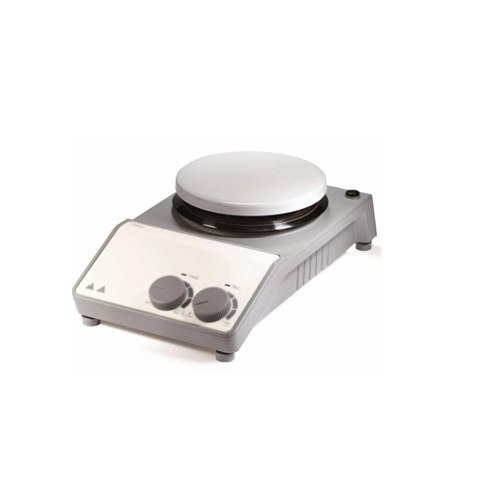

Hotplate Magnetic Stirrer

Hotplate Magnetic Stirrer
Model ID: MS-H-S

•   Maintenance free brushless DC motor
•   Max. temperature to 340°C
•   Stirring speed up to 1500 rpm
•   Stainless steel work plate with ceramic coating provides good chemical-resistant performance
•   Safety circuits provide overheating protection
•   A wide variety of accessories are available



Specifications

MS-H-S

Work plate dimension

φ135mm (5 inch)

Work plate material

stainless steel cover with ceramic

Motor type

Brushless DC motor

Motor rating input

18W

Motor   rating output

10W

Power

550W

Heating   output

500W

Voltage

100-120/200-240V    50/60Hz

Stirring   positions

1

Max.   stirring quantity [H2O]

20L

Max.   magnetic bar[length]

80mm

Speed range

100-1500rpm
  resolution±1rpm

Speed   display

Scale

Temperature display

Scale

Heating temperature range

Room   temp.-340°C

Over   temperature protection

420°C

Temperature   display accuracy

±0.5°C

Protection   class

IP42

Dimension   [WxDxH]

160×280×85mm

Weight

2.8kg

Permissible   ambient temperature and humidity

5-40°C, 80%RH
