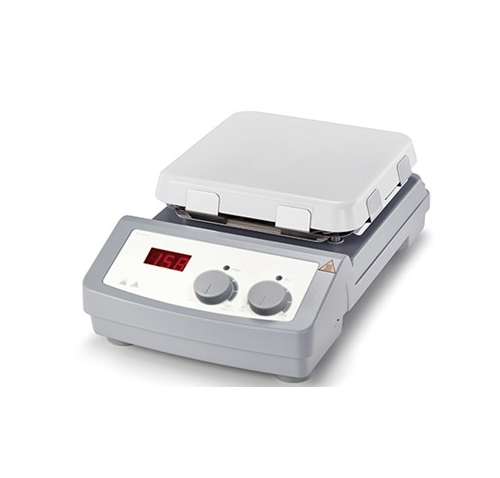

Hotplate Magnetic Stirrer

Hotplate Magnetic Stirrer
Model ID: MS7-H550-S

•   LED display for precise monitoring of temperature
•   A wide speed range of 0 to 1500rpm
•   Max. Heating plate temperature 550°C
•   External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at   ±0.2°C
•   The  “HOT”  warning  will  flash  if  the  work  plate  temperature  is above  50°C



Specifications

MS7-H550-S

Work plate Dimension   [W x D]

184x184mm (7 inch)

Work plate material

Glass ceramic

Motor type

Shaded pole motor

Motor rating input

15W

Motor rating output

1.5W

Power

1030W

Heating output

1000W

Voltage

100-120/200-240V  50/60Hz

Stirring positions

1

Max. stirring quantity, [H2O]

10L

Max. magnetic bar[length]

80mm

Speed range

0-1500rpm

Speed display

Scale

Temperature display

LED

Heating temperature range

Room temp.-550°C, increment 5°C

Temperature control accuracy

±10°C

Overheating protection

580°C

Temperature display accuracy

±1°C

External temperature sensor

PT1000 (accuracy ±0.2)

"Hot" warning

50°C

Protection   class

IP21

Dimension   [WxDxH]

215x360x112mm

Weight

4.5kg

Permissible   ambient temperature and humidity

5-40°C, 80%RH
