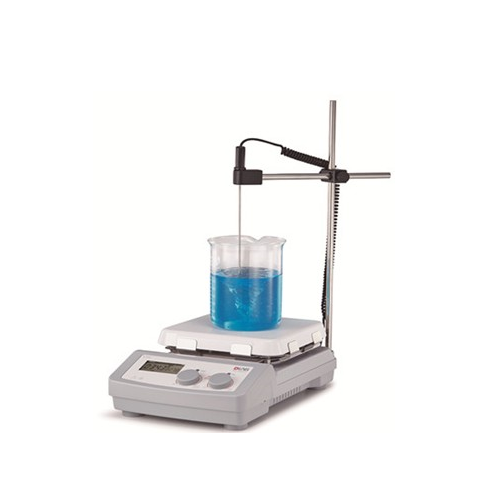

Hotplate Magnetic Stirrer

Hotplate Magnetic Stirrer - 550°C
Model ID: MS7-H550-Pro

•   LCD display for precise monitoring of speed and temperature
•   Built-in PID controller ensures safe heating of the medium with overheating protection
•   Max. heating plate temperature 550°C
•   Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
•   External temperature  control  is  possible by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.2°C
•   Digital speed controlling, max. speed at 1500rpm
•   Outstanding brushless DC motor enables more stirring power
•   Two rotating knobs enable easy adjustment of speed and temperature
•   The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
•   Remote function provides PC control and data transmission



Specifications

MS7-H550-Pro

Work plate Dimension [W x D]

184x184mm (7 inch)

Work plate material

Glass ceramic

Motor type

Brushless DC motor

Motor rating input

18W

Motor rating output

10W

Power

1050W

Heating output

1000W

Voltage

100-120/200-240V 50/60Hz

Stirring positions

1

Max. stirring quantity, [H2O]

20L

Max. magnetic bar[length]

80mm

Speed range

100-1500rpm
  resolution ±1rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room Temp.-550°C, increment 1°C

Temperature control accuracy

±1 °C (<100°C) ±1%(>100°C)

Overheating protection

580°C

Temperature display accuracy

±0.1°C

External temperature sensor

PT1000 (accuracy ±0.2)

"Hot" warning

50°C

Data connector

RS232

Protection class

IP21

Dimension [WxDxH]

215x360x112mm

Weight

5.3kg

Permissible ambient temperature and humidity

5-40°C, 80%RH
