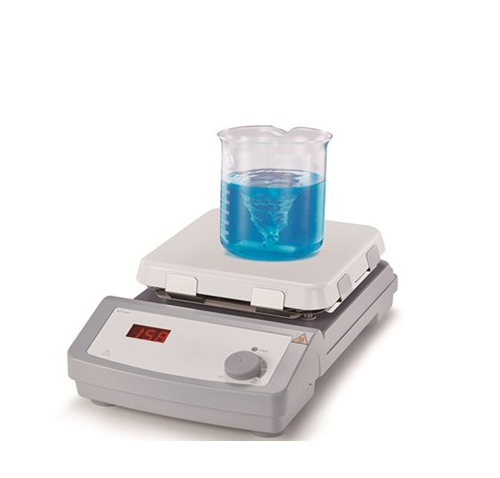

Hotplate Magnetic Stirrer

Hotplate Magnetic Stirrer
Model ID: HP550-S

•   LED screen shows temperature
•   Max. temperature up to 550°C
•   Separate safety circuits with fixed safety temperature of 580°C
•   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT 1000) with an accuracy at ±0.5°C
•   Glass  ceramic  work  plate  provides  excellent  chemical-resistant performance and most efficient heat transfer
•   The  “HOT”  warning  will  flash  if  the  work  plate  temperature  is above 50°C even when the hotplate is turned off



Specifications

HP550-S

Work plate Dimension

184x184mm (7 inch)

Work plate material

Glass ceramic

Power

1010W

Heating Power

1000W

Voltage

100-120/200-240V,50/60Hz

Heating position

1

Heating temperature range

Room temp.-550°C, increment 5°C

Speed range

0-1500rpm

Control accuracy of work plate

±10°C

Safety temperature

580°C

Temperature display

LED

Temperature display accuracy

±1°C

External temperature sensor

PT1000(±0.5°C)

Heating warning

50°C

Protection class

IP21

Dimension [W x D x H]

215x360x112mm

Weight

4.5kg

Permissible ambient   temperature and humidity

5-40°C,  80%RH
