Spectrophotometer

Spectrophotometer

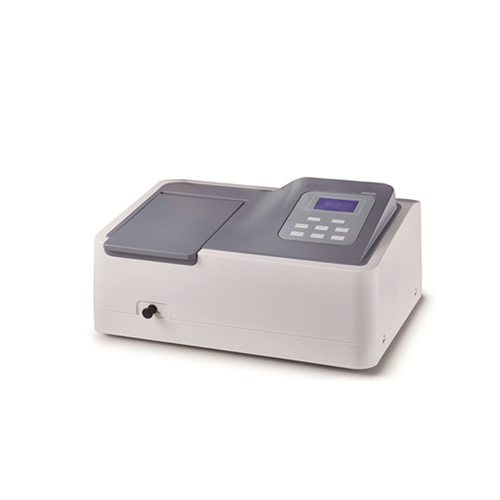

Model ID: SP-UV1000

•   User Friendly Operation and Information Rich LCD Display: The large  128  x  64  dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
•   On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
•   Data can be restored after a sudden power failure.
•   Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
•   Automatic Switching: Tungsten& Deuterium lamps switching is automatic. Selectable from a wavelength range of 190 to 1100nm.
•   Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.


Model

 SP-UV1000

Optical system

Single Beam

Light Source

 Tungsten lamp&
    Deuterium lamp

Spectral Bandwidth

 4.0nm

Wavelength Range

200-1000nm

Wavelength Accuracy

±2nm

Wavelength Repeatability

 ≤1nm

Photometric Range

-0.3-3.0A, 0-200%T

Photometric Accuracy

±0.003A@0.5A,

±0.006A@1.0A
     ±0.5%T@100%T

Photometric Repeatability

  ≤0.0015A@0.5A,
  ≤0.003A@1.0A,

     ≤0.25%T@100%T

Stability

≤0.002A/h @500nm
  (after preheat 2 hours)

Stray Light

  ≤0.2%T@220&360nm

Sample Compartment

4-position,10mm
  pathlength cuvette

Display

LCD

Output

USB Port & Parallel Port (Printer)

Power

 110/220VAC, 50/60Hz,120W

Dimension (L×W×H)

490×360×210mm

Weight

14kg
