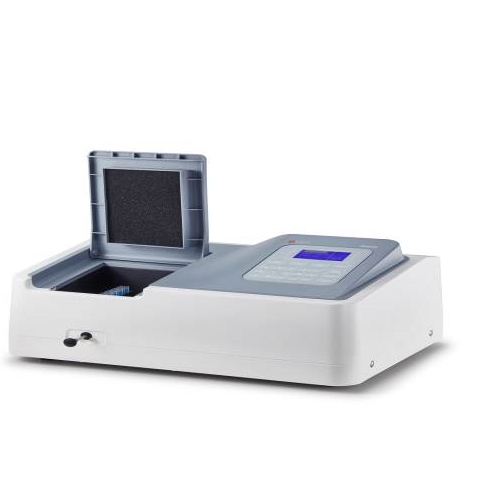

Spectrophotometer

Spectrophotometer
Model ID: SP-UV1100

•   User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.

•   On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
•   Data can be restored after a sudden power failure.

•   Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.

•   Automatic Switching: Tungsten& Deuterium lamps switching is automatic. Selectable from a wavelength range of 190 to 1100nm.

•   PC control through application software: The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides computer control for the spectrophotometer (through the built-in USB port), apart from other functions such as spectrum scan, Time scan(kinetics), multiwavelength scanning & Nucleic Acid /Protein measurement. (SP-V1100/SP-UV1100)

•   Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available





Model

SP-UV1100

Optical   system

Single   Beam

Light   Source

Tungsten   lamp & Deuterium lamp

Spectral   Bandwidth

2.0nm

Wavelength   Range

 190-1100nm

Wavelength   Accuracy

±0.5nm

Wavelength   Repeatability

≤0.3nm

Photometric   Range

 -0.3-3.0A,    0-200%T

Photometric   Accuracy

±0.002A@0.5A,
   ±0.004A@1.0A,
  ±0.3%T@100%T

 Photometric   Repeatability

≤0.001A@0.5A,
  ≤0.002A@1.0A,
  ≤0.15%T@100%T

Stability

≤0.002A/h   @500nm
  (after preheat 2 hours)

Stray   Light

≤0.05%T@220&360nm

Sample   Compartment

4-position,10mm
  pathlength cuvette

Display

LCD

Output

USB   Port & Parallel Port (Printer)

Power

110/220VAC,50/60Hz,120W

Dimension   (L×W×H)

490×360×210mm

Weight

14kg
