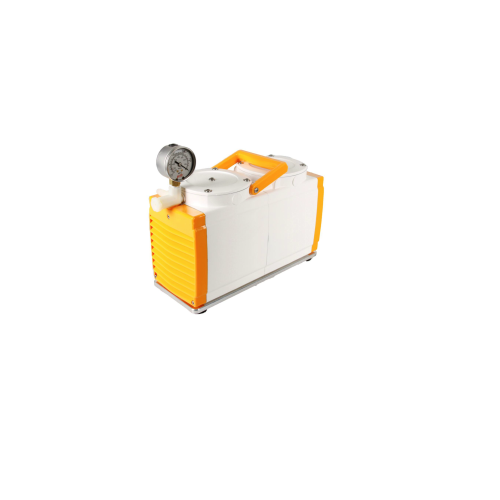

diaphragm pump

Features:

1.         without any work medium during operation, don’t create any pollution, to ensure a stable vacuum performance

2.         weight light, carry easy, working stable, good vacuum performance, working quiet

3.         adopting the design which membrane movement without friction, don’t generate thermal and friction loss, that make it long term working stable

4.         the cooling system design make the pump can work 24 hours of continues work

5.         adopting the design of pressure adjustable, that make it can handle different pressure requirement which under a limited range

Specification

1.         Pump speed (L/Min): 30

2.         Max vacuum pressure: <0.095Mpa

3.         Vacuum degree: 50mbar

4.         Nozzle Diameter of in and out (mm): φ6

5.         Power(w): 160

6.         Permissible ambient temperature(℃): 7—40

7.         Pump body working temperature: <55

8.         Noise (DB): <50

9.         Dimension(mm) L x W x H: 300×120×235

10.     Weight (Kg): 10

11.     No of heads: dual head, diagram pump
