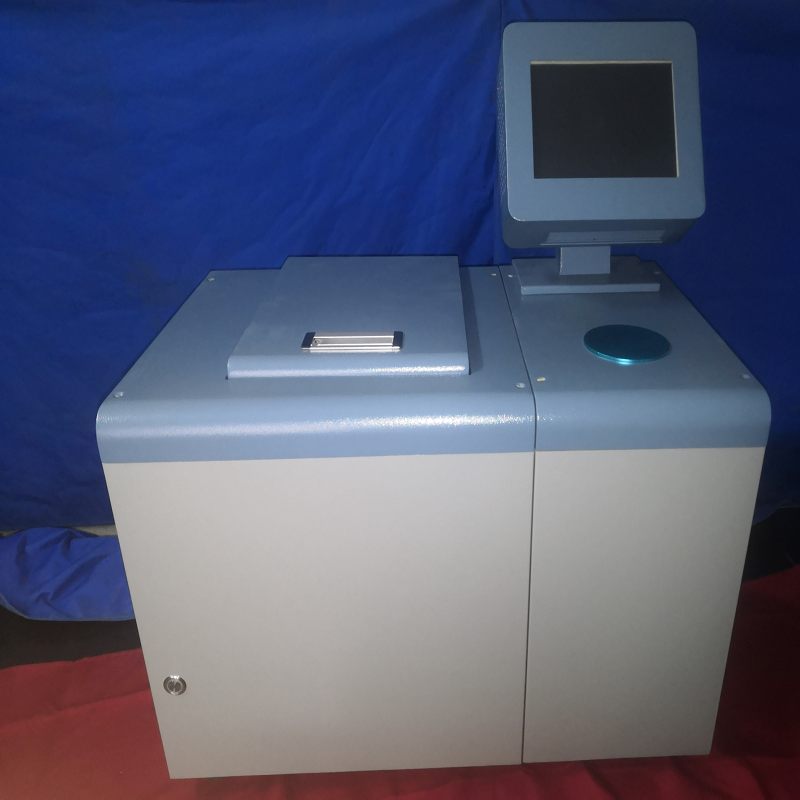

Automatic Calorimeter

Product ID:YX-ZR/T

Application area

It is applicable in the industry such as electrical power, coal, papermaking, petrochemical, cement, farming, medical research, and instruction to measure the Calorific Value of combustible materials. It conforms to ASTM D240, ASTM D5865, and ISO 1928.



Technical parameters

Calorimeter type: Isoperibol

Temperature range: 5℃40℃

Temperature resolution: 0.0001℃

Precision (Precision Mode): RSD≤0.1

Main Period Testing time (Precision Mode): 8 min

Memory: >10,000 Testing Results

Power Supply: 220V, 50/60HZ

Power: ≤1.5kw

Dimension: 540mm×420mm×420 mm

Weight: 45kg



Features

Ø  CE Certificated.

Ø  Built-in touch screen controller

Ø  With the semi-conductor water refrigeration system, the instrument can automatically determinate the refrigerating capacity and balance the circulation system according to the caloric of previous time. Thus the water temperature can be kept constant, and the influence of environment can be greatly reduced. Perfectly solved the problem that the tests cannot be made continuously after 4-5 tests have been made because the temperature difference between outer bucket water and environment exceeds 1.5℃.

Ø  There is no need to measure water and adjust water temperature in the whole experiment, thus to make manipulation easy and convenient.

Ø  With advanced small oxygen filling instrument. Low malfunction rate.

Ø  Probe-type electronic measuring cup is used to measure the inner bucket water, repetition error is less than 0.5g, so the water quantity is more accurate and the testing time is shorter.

Ø  The special auto stop and auto draining joints are equipped to change the water. When the drainpipe is connected, the instrument discharge water; when the drainpipe is taken off, the water will stop effusing.

Ø  Using the advanced USB technology, one computer can control 1-4 calorimeter buckets or other instruments, thus to make up synthesized testing instrument.

Ø  Completely support Windows systems; high stability; can link electronic scale and share data in long distance through network.



Configuration

Item

Quantity

Unit

Calorimeter

1

PC

Constant Temperature   Bucket

1

PC

High Precision Temperature   Measuring Card

1

PC

Oxygen Bomb

1

PC

Oxygen Bomb Bracket

1

PC

Oxygen Bomb   Gasket Ring

1

Set

Deflation Valve

1

PC

Oxygen Charging   Facility

1

Set

Oxygen Charging Pipe

1

PC

6MPa Decompression Valve

1

PC

Ignition Thread

1

Box

Standard Benzoic Acid

2

Bottle

Heating Crucible

10

PC

Asbestos

1

Bag

Wrench

1

PC

Screwdriver

1

Set

Socket Board

1

Set

Delay Fuse (3A)

5

PC

Controlling Cable

1

PC

Exhaust Pipe

1

PC

Offlet Pipe

3

PC

Application Software for Windows   System

1

CD

Instruction Manual

1

PC
