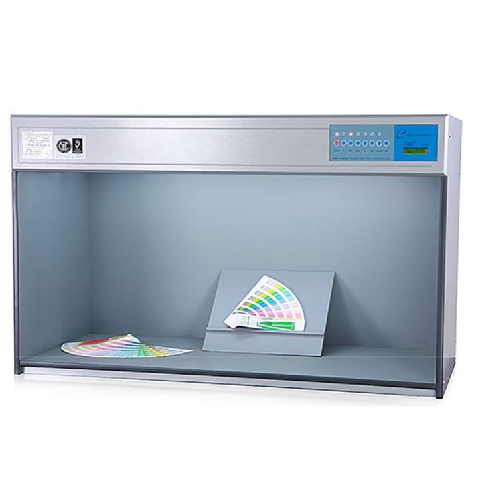

Color Light Box /Color viewing light

Product ID:LB-P120

Color light box can accommodate up to 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.



TILO LB-P120 color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.



Features:

1. TILO Color light box render color more accurately. With 6 different light sources (D65, TL84, CWF, TL83, F, UV), which can detect the metamerism.

2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

3. Easy to operate by using individual switches for each light source.

4. Elapsed time meter for tracking optimal lamp replacement.

5. Automatically alternating among light sources.

6. No warm-up time or flickering which insures quick and reliable color judgment.

7. Economic power consumption and low heat generation for high light efficiency.

8. The dimension can be made by customized.



Order Number

Configured light sources

Weight

Dimensions(mm)

Color lighting box

D65,   TL84, UV, F, CWF, TL83

60Kg

1310*600*800



About Light Sources:

Light Source

Color lighting box application

Color temperature(k)

Power(W)

D65

International standard Artificial Daylight

6500

18

TL84

Applied to stores in Europe, Japan and   China

4000

18

CWF

(Cool White Fluorescent) American Standard

4150

18

F

"Sun-setting Light Yellow"   incandescent light source (imitation of sunset)

2700

40

UV

Viewing under ultraviolet light to detect   and evaluate optical brighteners or fluorescent pigments

Wavelength:365nm

20

TL83

         Applied   to stores in Europe

3000

18
