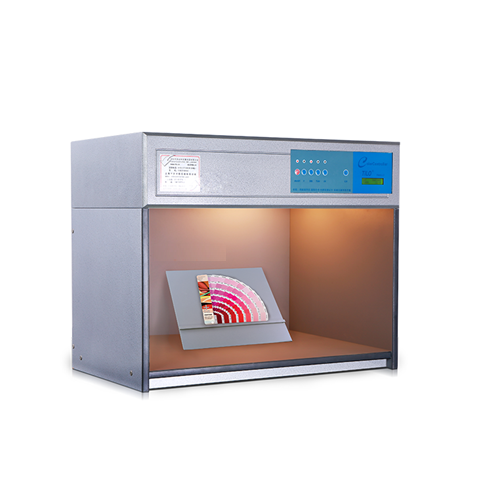

British color light box

Product ID:LB-T60B

Color light booth is equipped with 4 light sources. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.



Features:

1. Display usage time, name, and number of switches for each source

2. Automatic switching of light source with metamerism

3. No warm-up, no flashing, fast and reliable evaluation of colors

4. Low energy consumption, no heat dissipation, high luminous efficiency

5. Original British CAC60 type lamp, the background color is fully compatible

6. TILO high standard international brand.



Application:

The Color matching booths / Colour assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.



Specifications:

Order   No.

Name

Model

D65

TL84

F

UV

Voltage

10102

Standard   light source booth

T60B   four light source(220V)

2 pcs

2 pcs

4 pcs

1 pcs

220V/50Hz

10802

Standard   light source booth

T60B   four light source(115V)

2 pcs

2 pcs

4 pcs

1 pcs

115V/60Hz



Light Sources:

  Light Source

Color viewing booths application

Color temperature(k)

Power(W)

Brand&Specification

D65

International standard Artificial Daylight

6500

20

VeriVide F20T12/65

TL84

Applied to stores in Europe, Japan and China

4000

18

PHILIPS
  TL-M 20W/840

F

"Sun-setting Light Yellow" incandescent   light source (imitation of sunset)

2700

40

(VeriVide)
  Crompton
  240V/40W

UV

Viewing under ultraviolet light to detect and   evaluate optical brighteners or fluorescent pigments

Wave length:365nm

20

PHILIPS
  TLD 18W/BLB
