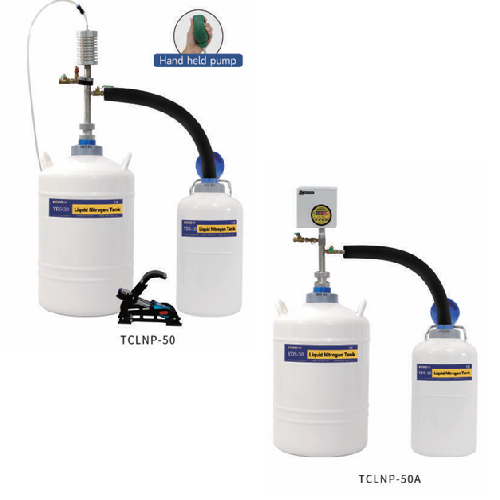

MODEL ID: TCLNP-50, TCLNP-50A
The liquid nitrogen automatic transfer pump series is used to vaporize a small amount of liquid nitrogen stored in the container, so that the liquid nitrogen contained in the container is discharged to achieve the purpose of replenishing liquid nitrogen to other containers. Advantages such as low rate loss.
Automatic liquid nitrogen transfer pump is a high-precision intelligent transfer equipment integrating pressure measurement, display control and integration. It has the characteristics of simple operation, good shock resistance, high control accuracy, fast boosting, rapid liquid drainage, small liquid nitrogen loss and long service life. lt can realize various functions such as easy start under low-pressure, high pressure stop control, and the full range of control pressure can be set. The liquid nitrogen is rapidly vaporized in the vaporization chamber, resulting in a low pressure (≤0.08MPa), and the liquid nitrogen is automatically discharged from the liquid nitrogen container. Avoid the disadvantages of damage to the liquid nitrogen container and a large amount of volatilization loss of liquid nitrogen dueto manual dumping. lt is an ideal equipment for animal husbandry, medical and scientific research users to realize a small amount of liquid nitrogen transfer.
Model | Compatible container diameter (mm) | Discharge pressure (≤MPa) | Discharge speed (L/min) |
TCLNP-50 | 50 | 0.03 | 3-5 |
TCLNP-50A | 50 | 0.05 | 6-8 |
