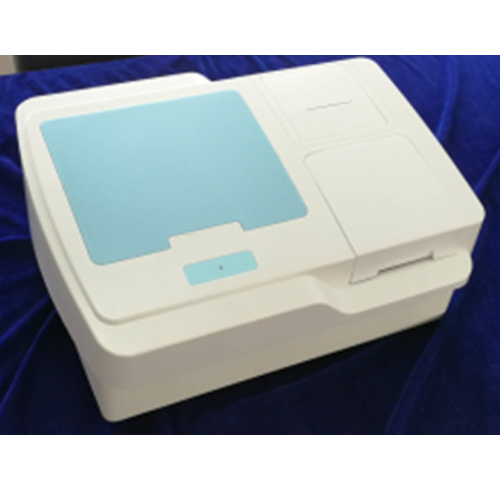

ELISA Reader

Features:

* Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas

* Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately

* Performing 12 different tests just in one plate

* Store 500 test items and 10,000,000 test data

* Multi-forms in result output including patient comprehensive report

* Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost

* With USB interface, easily connect to PC, comprehensive functions with Found WorkStation PC software

Technical Specifications:

Photodetector: Silicon Photodiode

Light source: Controlled tungsten halogen lamp

Wavelength range: 400nm~800nm

Indication range: 0.000~4.000OD

Accuracy: ±1.0% at 1.0 OD, 450um

Reproducibility: ±1.0% at 1.0 OD, 450um

Standard filters: 405,450,492,630nm

Additional filters: on request, filter wheel for up to 8 filters

Shaking: Linear Shaking, 3 speeds

Interface connections: USB

Power supply: 100~240V, 50~60Hz

Dimensions/ weight: 460×350×197mm/11kg
