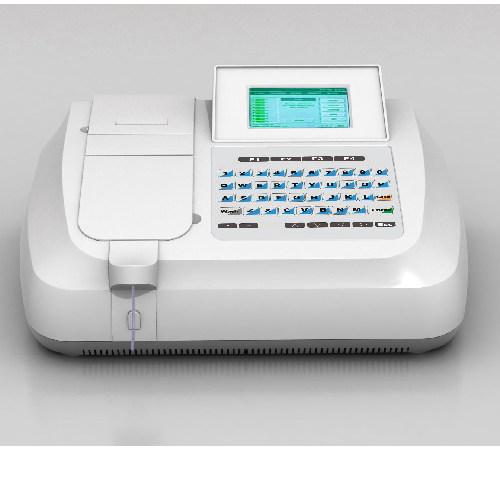

Semi-auto Biochemistry Analyzer

Characteristics

Absolutely open system both for progamming and reagent

Real time curve monitoring, Reaction graph printable

On board quality control, 3 types of control, QC results stored for 3 months, QC plot printable

Self-calibration and trouble alarm function

Memory for 100 programs and 20000 test results

Flow cell Cuvette reading

Technical Parameters

Light Source: 6V/10W Halogen Lamp, Life span> 3000 hours

Standard filter: 340nm, 405nm, 505nm, 546nm, 578nm, 620nm, 670nm and one free position.

Band width: ≤8nm

Linearity range: 0.000-3.000 Abs

Cross contamination rate: 1%

Test mode: Kinetics, Bichromatic, End-point, Differential, Fixed time, Multi-Standard

Retest: Retest defined by user, calculate Mean value, SD and CV

Delay Reading time: Programmable, 3-999 seconds

Quality Control: QC results stored in memory; QC plot printable

Optical detection element: Photocell

Display: 240×128LCD

Measuring: 32ul Flow cell or Cuvette optional, diameter: 1cm

Aspiration volume: 200-2000 ul

Temperature control:25℃,30℃.37℃, controlled by Peltier element

Language: English and any language on request

Printing: Built-in Thermal printer, RS232 interface for additional PC

Certificates: ISO9001, ISO13485 and CE certificates

Power supply: AC220V/110V+10%, 50/60Hz

Power consumption: ≤50VA

Environmental temperature:10°C-40℃

Humidity: ≤85%

Dimension:496mm×390mm×216mm(L*W*H)

Weight: 9kg
