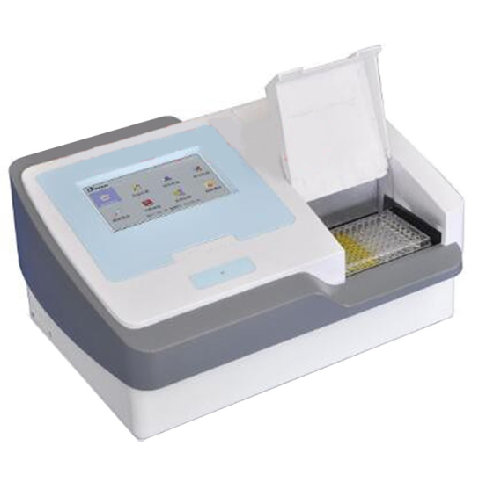

ELISA Reader

Features:

* Graphical operating interface, menu designed for convenient use

* High brightness and large size LCD, with touch screen input

* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen

* Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas

* Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately

* Performing 12 different tests just in one plate

* Multi-forms in result output including patient comprehensive report

* Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost

* Optional external mouse action and standard keyboard

* With serial RS-232 interface and parallel interface

* Easy connect to PC, comprehensive functions with Found WorkStation PC software

Technical Specifications:

Photodetector: Silicon Photodiode

Light source: Controlled tungsten halogen lamp

Wavelength range: 400nm~800nm

Indication range: 0.000~4.000OD

Resolution: 0.001OD

Accuracy: ±1.0% at 1.0 OD, 450um

Reproducibility: ±1.0% at 1.0 OD, 450um

Standard filters: 405,450,492,630nm

Additional filters: on request, filter wheel for up to 8 filters

Shaking: Linear Shaking, 3 speeds

Display: 320 × 240 LCD

Interface connections: USB, Serial RS-232, parallel printer interface, PS2 Mouse & Keyboard

Power supply: 100~240V, 50~60Hz

Dimensions/ weight: 460×350×197mm/11kg
