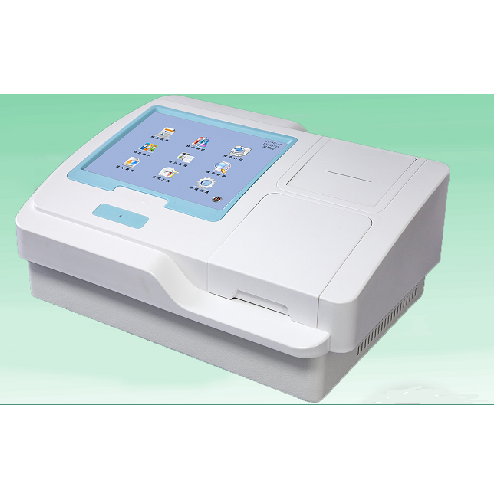

ELISA Reader

Features:

* Graphical operating interface, menu designed for convenient use

* High brightness and large size LCD, with touch screen input

* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen

* Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas

* Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately

* Performing 12 different tests just in one plate

* Multi-forms in result output including patient comprehensive report

* Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost

* Easy connect to PC, comprehensive functions with Found WorkStation PC software

Technical Specifications:

Photodetector: Silicon Photodiode

Light source: Controlled tungsten halogen lamp

Wavelength range: 330~1100nm

Indication range: 0.000~4.000OD

Resolution: 0.001OD

Accuracy: ±1.0% at 1.0 OD, 450nm

Reproducibility: ±1.0% at 1.0 OD, 450nm

Standard filters: 405,450,492,630nm

Additional filters: on request, filter wheel for up to 8 filters

Shaking: Linear Shaking, 3 speeds

Display:10.4-inch color LED display, resolution 1024*600

Interface connections: DVI, VGA, NETWORK INTERFACE, USB, AUDIO INTERFACE, RS-232

Power supply: 100~240V, 50~60Hz

Dimensions:460×350×197mm

weight: 10kg
