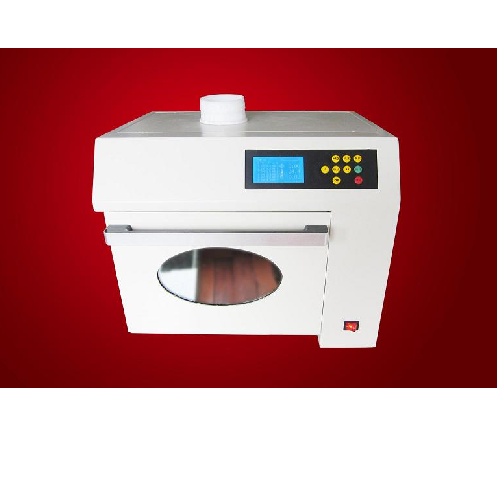

Microwave Digestion and Extraction Device

Technical Parameters
1. Microwave power 1200W, frequency: 2450MHz
2. Using platinum resistance temperature control system, real-time display and control digestion tank temperature, temperature range: 0-300 ℃, monitoring accuracy 0.1 ℃
3. Configuration full tank pressure control system, also optional contactless inductive FM pressure measurement and control or contact guide tank pressure, real-time display and control the pressure of reaction tank, the control range: 0.1 to 10 MPa (1500 psi / 100 atmospheres), precision is 0.01 MPa
4. Can realize microwave high pressure digestion, microwave extraction, microwave COD digestion, amino acids and other digestion mode, support the EPA and ASTM standards
5. Each batch processing 1-6 samples at the same time, by plate microwave heating technology, multiple samples simultaneously digested better uniformity
6. All reaction tank can be outside the furnace chamber cooling, cooling speed, suitable for air cooling and water cooling two ways, high efficiency furnace chamber
7. Professional uniform furnace chamber (microwave cavity) design ensure that all samples synchronous processing, using nanometer technology processing furnace chamber, high temperature resistance multiple anticorrosion coating, ensure the long-term protection against all kinds of acid gas and solvent corrosion
8. Furnace chamber equipped with high-power exhaust system, a variety of reactions can be ventilated, safety and easy to observe environment continuously for a long time

Main features
1.Use the advanced microwave heating technology into the sample digestion, many samples at the same time resolution uniformity is better
2. Industry pioneered in PFA processing furnace cavity, corrosion resistance, resistant to high temperature
3. Professional pull-down sliding door mechanism, effective protection for pressure relief
4. LCD panel and intelligent program design, you can store a variety of sample programs, support the EPA and other Chinese and international standard method
5. Double CPU monitoring, intelligent PID automatic frequency control, ensure that the sample digestion time and temperature accurately
6. Multiple active and passive security measures: intelligent security alarm device, safety relief hole, safety explosion-proof film
