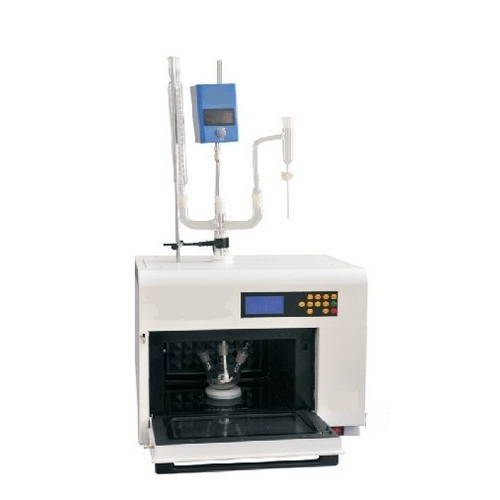

Atmospheric pressure microwave synthesis reaction instrument

The instrument can complete addition, replace, esterification and catalytic hydrolysis, alkanes (acyl), polymerization, condensation, cyclization and oxidation and so on many kinds of organic, and biochemical reaction of drugs and food, physical processes such as solvent extraction of natural products and minerals. Applicable to organic synthesis chemistry, medicinal chemistry, food science, quarantine and epidemic prevention, military chemistry, molecular biology, analytical chemistry, inorganic chemistry, petroleum chemical engineering, materials science, biology, medicine, etc. The instrument is of important application value in these areas, or accelerated by the enthalpy effect and the entropy effect induce chemical reactions and physical process, the reaction speed up hundreds of times and even thousands of times faster than conventional methods, improve the reaction selectivity and yield at the same time, make the past many difficult to occur or slow process of chemical reactions or physical easy implementation and high speed. Equipment operation is simple, through the Windows can be directly observed reaction progress, experimental process for monitoring all the way, suitable for scientific research and teaching of undergraduate course.

Technical Parameters:
1. Power: 0 ~ 1000W, 10-speed adjustable, automatic frequency control
2. Temperature test and Temperature control range: 0 ~ 300 ℃
3. Monitoring accuracy: 0.1
4. Stainless steel cavity spray PFA, high temperature resistant, easy to clean
5. Reaction volume: 10 ~ 1000mL optional
6. LCD preset temperature, the current temperature, the reaction time
7. With temperature self-calibration function
8. Provide different mechanical agitation speed, make the reaction more fully, more uniform temperature
9. Contact temperature sensors, real-time monitoring of temperature. The surface coating corrosion resistance to high temperature
10. Open reaction system, can install the dropping funnel and reflux reaction condenser pipe
11. Microwave leakage is superior to the national standard
