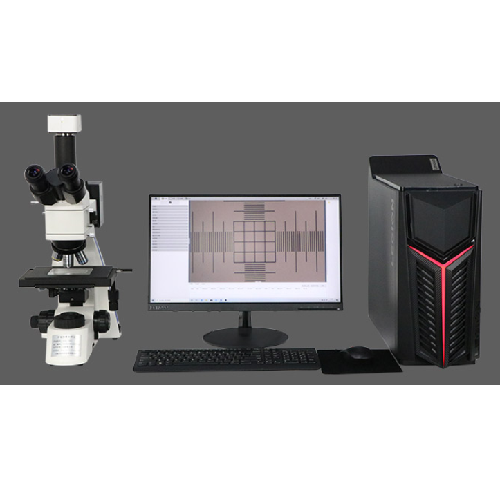

Fiber image analyzer

Product ID:HW-SYD-XW2

This instrument is designed and manufactured in accordance with the transportation industry standard JT/T 533-2020 "asphalt pavement fiber" "Appendix G wood fiber content test method," "Appendix H fiber length and diameter test method," "Appendix T cross-section method to determine fiber diameter test method" related requirements, the use of microscope and special analysis software method, the configuration of large field of view eyepieces and special objectives, the field of view is large and clear, Coarse micro coaxial focusing mechanism, coarse loose tension adjustable, with limit locking device, can freely switch the test field / polarization observation, 100% light transmission photography, to complete the analysis and measurement of multi-functional fibers.



Note: This instrument can be used for the detection of wood fiber content, but also for measuring fiber length and diameter, it is a multifunctional instrument for fiber quality detection.



Main technical features

1. Dedicated analysis software can realize multi-functional fiber analysis and measurement.

2. It comes with three eyepiece tubes, which can be freely selected according to the needs of use.

3. Abbe condenser with 25~500 times magnification and aperture diaphragm.

4. It comes with a color digital video camera with up to 20 million pixels.

5. Both transmission and reflection adopt high-power LED lighting devices with adjustable brightness.

6. The stage is adjustable in three dimensions and easy to use.

7. USB3.0 ensures stable and efficient data transmission.



Main technical indicators and parameters

1. Power supply: AC 220V±5%, 50Hz

2. Magnification: 25~500

3. Focusing range: 25mm

4. Camera pixels: 20 million

5. Magnification of photo-fitting lens: 0.5 times

6. measurement length resolution: 0.01mm

7. Measurement width resolution: 0.01μm

8. Lighting device: reflected light LED
