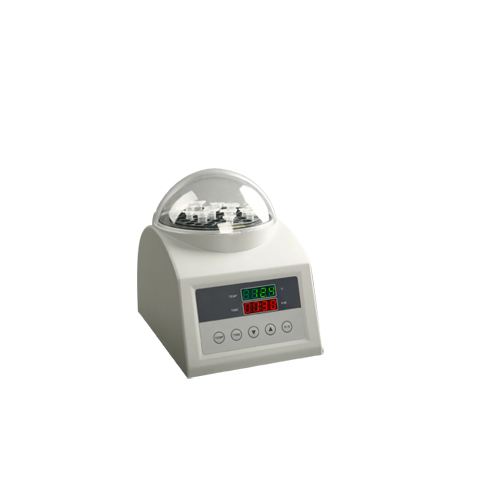

Dry Bath Incubator

The Dry Bath Incubator is a microprocessor-controlled product. With this technique, more stable and accurate temperature control is achieved. Replacement is convenient with optional metal modules of various specifications configured for different types of test tubes.

Features

1. LED display
2. Current temperature and count down time display
3. Metal blocks free of sample counter-pollution
4. Easy replacement, cleaning and disinfecting of metal blocks
5. Built-in over-temperature protection
6. Calibrating temperature discrepancy
7. Buzzer alarm when temperature control ends
8. Only heating design and Custom blocks are available

Specification

1. Temperature control range: from 5℃ above ambient to 100℃
2. Time required for temperature to increase from 20℃ to 100℃: ≤15 min
3. Temperature control discrepancy: ≤±0.5℃
4. Display discrepancy: ±0.1℃
5. Homogeneity of block temperature: ≤± 0.5℃
6. Maximum heating power: 150W
7. Maximum temperature: 105℃
8. Time Range: 99 h 59 min

Blocks

Code                         Description

LAB-01030-00      AC100 or 220V 50/60Hz, 100W

Code                         Type          Description for blocks
AS-01031-01           A-30           96 x 0.2ml tubes
AS-01031-02           B-30           29 x 0.5ml+32 x 1.5ml tubes
AS-01031-03           C-30           61 x 0.5ml tubes
AS-01031-04           D-30           41 x 1.5ml tubes
AS-01031-05           E-30            41 x 2.0ml tubes
AS-01031-06           F-30            61 x Φ6mm tubes
AS-01031-07           H-30           28 x Φ12mm tubes
AS-01031-08           I-30             28 x Φ13mm tubes
AS-01031-09           J-30            21 x Φ15mm tubes
AS-01031-10           K-30           21x  Φ16mm tubes
AS-01031-11           L-30           17 x Φ18mm tubes
AS-01031-12           M-30           14 x Φ20mm tubes
AS-01031-13           N-30           9 x Φ25mm tubes
AS-01031-14           O-30           4 x Φ32mm tubes
