Dry bath incubator

Dry bath incubator
LAB-01210-00

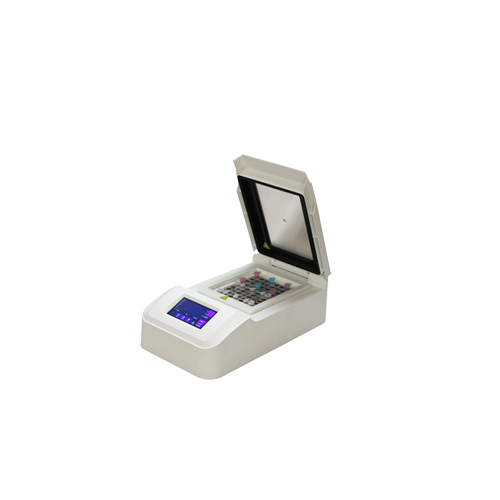

The dry bath incubator holds the thermal cycle's heating lid technology, two blocks and touch screen product with a patent. It's the most luxury dry block heating for all over the world.

Features

1. Exceptional temperature uniformity and accuracy -- due to advanced temperature control combined with high quality, precision engineered block providing excellent thermal contact
2. Hold a heating lid, 60 user programmable settings
3. Touch screen allows for easy to read and easy programming and easy to use. It can display the real time temperature
4. Programmable system and program link functions, it can be runned for some simple PCR tests
5. Wide range of interchangeable aluminum blocks
6. Block extraction tool is supplied, allowing blocks to be removed easily
7. A stainless plate can press on the tubes lid and avoid the tubes lid opening when user incubate at a high temperature
8. 2-years warranty as standard



Specification
1. Temperature Control Range:                 RT+5
~ 100
2. Stability @ 100
:                               ±0.4
3. Uniformity: within the block @ 37
:     ±0.2
            Across similar blocks @ 37
:     ±0.3
4. Heating time (25
to 100):               ≤20min
5. Cooling time (100
to 40):               ≤20min
6. Display Accuracy / Display:                  0.1
/ Touch Screen
7. Timing Range:                                       1sec ~ 99h59min
8. Block Quantity:                                    2
9. Dimensions L x W x H (mm):                380 x 210 x 160
10. Weight (kg):                                       5.5

Blocks for Dry Bath Incubator

Code

Type

Block Description

AS-01181-01

BH01

96×0.2ml PCR plate

AS-01181-02

BH02

45×0.5ml tubes

AS-01181-03

BH03

35×1.5ml tubes

AS-01181-04

BH04

35×2.0ml tubes

AS-01181-05

BH05

15×o.5ml+20×1.5ml tubes

AS-01181-06

BH06

20×1.5ml+15×2.0ml tubes

AS-01181-07

BH07

32×0.2ml+22×0.5ml+9×1.5ml tubes

AS-01181-08

BH08

20×5.0ml tubes

AS-01181-12

BH12

 96×0.2ml Elisa plate or 4 slides

AS-01181-13

BH13

Solid block (no holes)

AS-01181-14

BH14

384 well PCR plate

AS-01181-28

T4

Block extraction tool

AS-01211-01

L4

Stainless plate



Code                 Description

LAB-01210-00   AC100 or 220V, 50/60Hz, 200W
