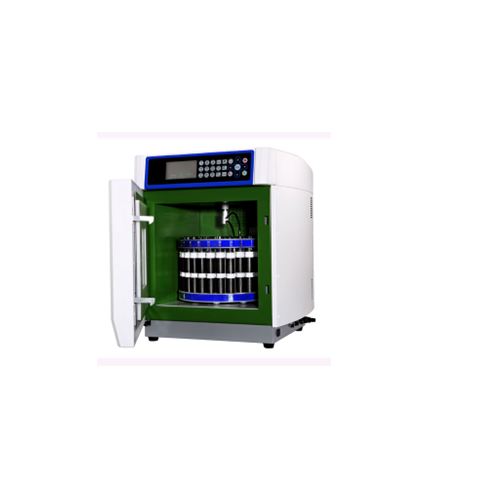

Ultra High Throughput Closed Microwave Digestion/Extraction Workstation

Ultra High Throughput Closed Microwave Digestion/Extraction Workstation
Model: MASTER

Description
1. High-strength alloy carousel: higher pressure and better digestion performance.

2. UTH-Caro design makes the carousel stir the microwave, guarantee samples digested evenly

3. Safety Bolt: safer, more accuracy in result and higher recycling rate.

4. Uni-Turn technology, increased homogeneity and reliability.

5. 15 minutes fast cooling

6. Easy operation with innovative tools

General technical features:

1. Explosion-proof outer vessel made of composite Xtra Fiber, better than those similar products on the market.

2. Advanced and reliable pressure measuring technology by piezoelectric crystal.

3. The temperature inside the digestion vessel can be controlled by the combination of precise measure of temperature inside master vessel and IR temperature scanning

4. High throughput rotor with optional strong magnetic stirring function specially for extraction or synthesis

5. 200ml vessels for large volume sampling.

6. Wireless remote visual monitoring system make reaction be clear at a glance.

7. 100-vessel ultrahigh throughput closed microwave digestion vessel and carousel breakthrough products for the industry

8．One for All

9. Industrial chamber structure, safer operation.

Technical Parameters

Power	220-240 VAC, 50/60Hz, 16A
Microwave source	2450MHz, dual magnetron design
Installed power	3600W
Maximum output power	2200W, non-pulse continuous automatic variable frequency control
Cavity	65L stainless steel industrial grade professional chamber, multi-layer chemical resistant PFA coating
Door design	6-layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) Design ctr mechanical dual-control door lock
Video monitoring system (Optional)	Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction
Pressure measurement and control system	Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.0 MPa
Temperature measurement and control system	High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1℃
Outer vessel material	Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600℃and 66 Mpa (10000psi).
Inner vessel material	Modified TFM material
Chamber exhaust system	High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C)
Working environment	0-40 °C, 15-80%RH
Whole physical size/weight	550670700 mm, 70 KG
passive pressure protection system	Adopt Safety Bolt design, quantitative and vertical pressure release when over pressure

Specification of digestion vessels and rotors in different throughput provided：
Name of reaction vessel	16-vessel high pressure rotor	14-vessel high/medium pressure large volume rotor	18-vessel ultrahigh pressure rotor	40-vessel high/medium pressure rotor	100-vessel high/medium pressure totor
Model of reaction vessel	GP-100	LV-200	XXP-100	HP-40	HP-100
Processing capacity in one batch	16	14	18	40	100
Magnetic stirring function	none	optional	optional	none	none
Inner vessel material	TFM	TFM	TFM	TFM	TFM
Outer vessel material	Xtra Fiber	Xtra Fiber	Xtra Fiber	Xtra Fiber	Xtra Fiber
Frame structure of digestion rotor	Independent frame structure of each digestion vessel	Independent frame structure of each digestion vessel	Independent frame structure of each digestion vessel	Independent frame structure of each digestion vessel	Independent frame structure of each digestion vessel
Reaction vessel volume	100ml	200ml	100ml	45ml, 70ml	15ml, 30ml, 50ml
Maximum design pressure	15MPa(2200psi)	8Mpa (1000psi)	18MPa (2600psi)	10MPa (1450psi)	10MPa (1450psi)
Maximum design temperature	310℃	260℃	320℃	300℃	300℃
Maximum sample amount	0.5-1.0g	1-2g	0.5-1.0g	0.1-0.5g	0.1-0.5g
Typical application	Foods, soil, metal, alloy, plastics, cosmetic, agricultural products and semiconductor	environmental samples and biological samples	In dissolvable metal and mineral, plastic, ceramics, Extreme micro o w a v e reaction.	Food, environment (such as waste water, sludge and soil etc.) biological samples.	geological samples and biological samples.
