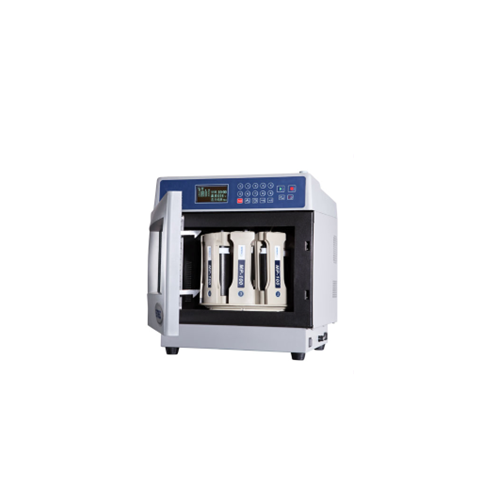

Closed Microwave Digestion/Extraction System

Closed Microwave Digestion/Extraction System
Model: MDS-6G (SMART)

Feature

·All-steel industrial grade chamber with corrosion resistance and ultra-long life;

·Ultra-strength aerospace composite fiber digestion outer vessel;

·Exclusive patented multifunctional safety bolt design, instead of safety membrane and other consumables;

·Precise pressure control by piezoelectric crystal without cross-contamination problem

Technical Parameters

Power	220-240 VAC 50/60Hz 8A
Microwave frequency	2450MHz
Installed power	1800W
Maximum output power	1000W, non-pulse continuous automatic variable frequency control
Turntable design	Load 8 MP-100 closed digestion vessels at same time
Pressure measurement and control system	Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control system	High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃
Outer vessel material	Explosion-proof outer vessel made of aerospace composite fiber
Inner vessel material	TFM material
Chamber exhaust system	High-power anticorrosion axial fan, exhaust speed: 3.1 m3/min
Operating ambient temperature	0-40°C
Working environment humidity	15-80%RH
Whole physical size	450 x 515 x 510 mm (W x D x H)
Net weight	40 KG
