Kjeldahl Distillation Unit

Kjeldahl Distillation Unit

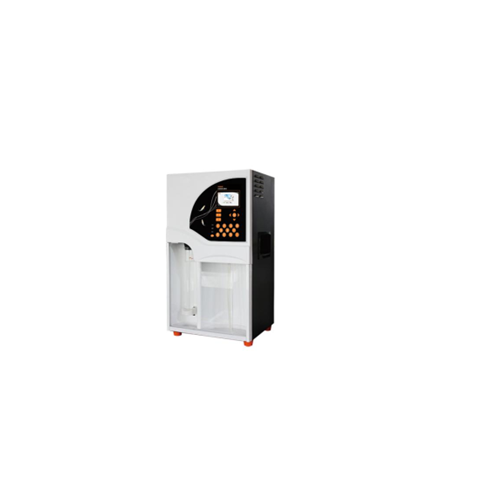

Model: PT-K9840

PT-K9840 Auto Distiller adopts globally accepted Kjeldahl nitrogen determination method to determine nitrogen content of sample.  All intelligent software design makes the sample distillation complete within minutes. The distillation and condensation automatic cleaning system makes the measurement precision further improved.

It is widely used in food processing, feed production, tobacco, livestock, soil fertility, environmental monitoring, medicine, agriculture, scientific research, teaching, quality control and other fields for the test of nitrogen or protein content, can also be used for the test of ammonium, volatile fatty acid/alkali, and so on.

·Display: 4.3 inch color screen.
·Manual/Automatic mode changeover free.
·Automatic Alkali pipeline washing function.
·Automatic or manual filling mode is optional according to test need.
·Distillation time can be edited freely, and automatic alarming upon completion.
·Automatic cleaning of control system and distiller, ensuring high measurement accuracy.
·Intelligent design of nitrogen tube peripheral facilities including safety designs and displacement hint.
·Intelligent cooling water control system achieves cooling water control and test.
·Emergency stop operation is able to deal with unexpected accidents.
·Automatic fault detection and intelligent audible and visual alarm system are available.
·Calibration Function: Dilution water calibration, Alkali solution calibration,
·Boric acid solution calibration, washing flow calibration.
·Safety door, digestion tube and cooling water condition is displayed at real time when running.
·Testing model is built in, for detect most functions condition.


·Automatic accurate distribute alkali and boric acid solution.

·Perfect safety protection system gives distiller and tubes measurement and protection against over temperature and over pressure.

·Calibration Function: Dilution water calibration, Alkali solution calibration, Boric acid solution calibration, Washing flow calibration.

·Safety door, Digestion tube and cooling water condition is displayed at real time when running.

Technical parameters

Measuring range

0.1mg 240mg N



Sample capacity

solid≦6g/sample, liquid≦16mL/sample

Distillation speed


Cooling water consumption


Operating mode

Manual/automatic mode

Display modes

4.3" LCD screen

Power supply

220VAC±10%, 50Hz



Net weight
