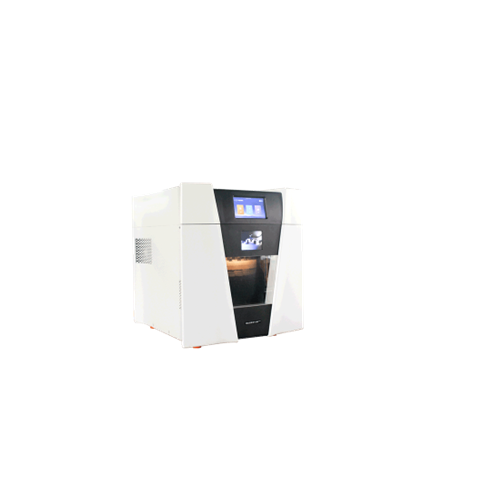

Microwave Digestion Workstation
Microwave Digestion Workstation
Model: TANK PLUS
Description
TANK PLUS Microwave Digestion Workstation is a brand new product released , which carries on the high quality of the TANK series. Focus on safety, efficiency, convenient and durable use, and also provides many features. Through accurate temperature/pressure control and high-efficiency dual magnetron non-pulse microwave heating technology, it can effectively improve sample digestion. With more than 20 high-standard technologies, it ensures the safety of laboratory personnel. At the same time, intelligent UI design, cloud services and other functions bring a comfortable operating experience to users.
Feature
Patented structure—the prefect combination of high-throughput digestion and high-pressure digestion.
Power | 220~240VAC 50/60Hz 20A |
Microwave source | 2450MHz, dual magnetron design, high energy microwave emission |
Installation power | 3800W |
Maximum output power | 2000W |
Microwave cavity | 66L large volume 316L stainless steel cavity, inner and outer multi-layer corrosion-resistant Teflon spray |
Explosion-proof safety door design | Safety door designed based on 3-D directional explosion-proof mechanism, anti-microwave leakage integrated with anti-flow groove structure design |
Pressure monitoring system | High-precision novel semiconductor pressure sensor with pressure control range: 0~10MPa (1450psi), control accuracy ±0.01MPa |
Temperature monitoring system | Non-metallic multi-core optical fiber + full tank IR dual temperature measurement, temperature control range: -40~305 °C, temperature control accuracy: ±0.1 °C |
Passive protection system | COT real-time temperature and pressure anomaly monitoring system can automatically alarm and cut off microwaves to protect users' safety when temperature and pressure anomalies occur in any one of the reaction vessels. |
Software | Android system; video SOP; built-in method library; cloud service, data storage and sharing; Wi-Fi remote connection, etc. |
Communication ports | With USB port and network cable port |
Video Monitoring | With an internal camera for real-time monitoring of the operation of the digestion vessel in the chamber |
Furnace exhaust system | Cool to room temperature for less than 15 minutes |
Microwave extraction module | Normal pressure extraction experiment |
Working environment | 0~40℃ / 15~80%RH |
Overall physical size / net weight | 600*685*660 (Width*Depth*Height)/62kg |
High-strength aerospace composite fiber outer vessel, perfect within mechanical strength and corrosion resistance.
Safety Bolt design, being fully sealed and digested while achieving quantified safety pressure relief.
Optical-fiber and IR temperature measurement system, having precise temperature control and simultaneous monitoring of abnormalities to ensure accurate results and experiment safety.
High precision semiconductor pressure sensor with high corrosion resistance and high mechanical strength.
Dual magnetron inverter control system ensures consistent sample digestion
Powerful and convenient software assistant in accordance with FDA 21 CFR Part 11.
Support by the cloud service function, expanding the storage capacity while keeping the data in safe.
The digester integrated dual LCD screen display, clearly showing the digestion state and experiment process.
A variety of supporting tools available, easy to take Experiment.
Technical Parameters
Vessel type | Self-pressure relief vessel | High pressure digestion vessel |
Batch numbers | 12 Vessels | 40 Vessels |
Inner Vessel material | TFM | TFM |
Outer Vessel material | Aerospace composite fiber | Aerospace composite fiber |
Rotor frame structure | Independent Frame vessel structure | High-strength integrated Carousel |
Reaction vessel volume | 100mL | 70mL |
Maximum design temperature | 300℃ | 300℃ |
Highest design pressure | 10MPa (1450psi) | 10MPa (1450psi) |
