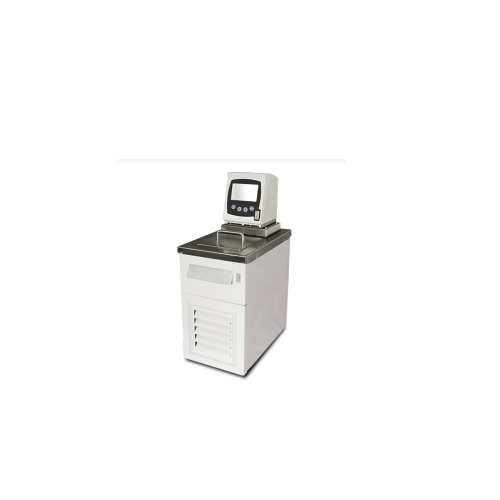

Refrigerated and Heating Circulator

Refrigerated and Heating Circulator
Model: PT-FCL6-05/PT-FCH6-05/PT-FCL6-20/PT-FCH6-20

Description
F Series Refrigerated and Heating Circulator can be widely used in oil, physical, chemical, pharmaceutical, environmental protection and other fields of science, precision temperature control equipment.



Application

Experiment that need heating and cooling.

Fermentation Tank

Polarimeter

Refractometer

Spectrophotometer

Electrophoresis System

Chromatographic Column

Viscometer

Rotation Evaporation Instrument

Rheometer



Feature

Fuzzy PID temperature control system: control temperature stability accurately and fast.

Multi-protection: Over-current protection, high and low temperature warning functions, dry-running protection.

Convenience function: Parameters memory function, temperature correction.

ECO-refrigerant R134a and high quality compressor guarantee the cooling system ecofriendly and powerful

Low Noise design: use high quality compressor and mute pump.

Robust water tank: ultra-slushing and rust-proof

Bright LCD temperature display

Compact design, removable venting grid for convenient cleaning to maintain cooling performance and drain off water

Technical Parameters

Model

FCL6-05

FCH6-05

FCL6-20

FCH6-20

Working temperature range

-5 °C ~ 100 °C

-5 °C ~ 200 °C

-20 °C ~ 100 °C

-20 °C ~ 200 °C

Temperature control

PID

Temperature stability

±0.03 °C

Temperature sensor

PT100

Display resolution

0.1 °C

Heater capacity

2000 W

Cooling capacity

250W

Refrigerant

R134a

Pump capacity Pressure

0.35 bar

Pump Flow rate

10L/min

Ambient temperature

-20 ~ 70 °C

Filling volume liters

6L

Bath opening L x W (cm)

16x 16

Bath dimensions L x W x H (cm)

32 x 18 x 15

Dimensions L x W x H (cm)

40 x 25 x 65

Power supply

220VAC±10% 50Hz

Weight (kg)

25


Note:"
" with the same technical index
