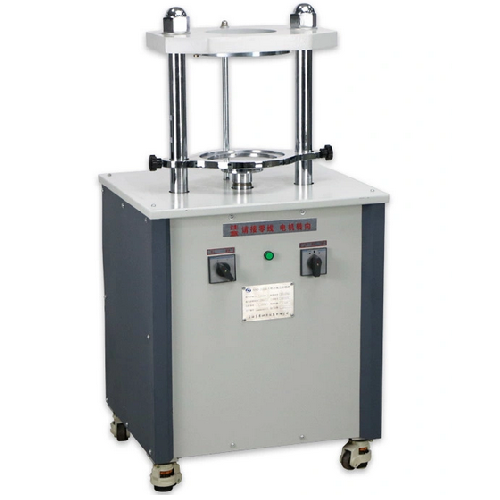

Electro-hydraulic stripper

Product ID:HW-SYD-200S-1

This instrument adopts electro-hydraulic transmission to apply the load, the structure design is reasonable, the operation is convenient, the work is stable, and the performance is stable and reliable. This instrument is mainly used for demoulding of related round test specimens. It is especially suitable for demolding of asphalt mixtures, cement mixtures and high-strength test specimens. It is used by highways, construction units, and related colleges and universities. It is a necessary demoulding instrument for the preparation of test pieces such as circular asphalt mixture and cement mixture in laboratories such as scientific research institutions.

This instrument is the first choice for our company's Marshall electric compaction instrument.



Main technical features

1. This instrument can be used for demoulding a variety of samples:

   ① Marshall stability test

   ② Concrete compression test model

   ③ Trial model of geotechnical heavy (light) compactor

2. High demoulding efficiency and low noise.

3. This instrument is composed of all-steel parts, strong and durable.

4. Two-way working oil cylinder can rise and fall freely.



Main technical indicators and parameters

1. Power supply: AC380V/50Hz

2. Maximum load: 20kN

3. The maximum height of the stripper: 230mm

4. Working pressure of oil pump: 30MPa

5. Demoulding speed: 200mm/min
