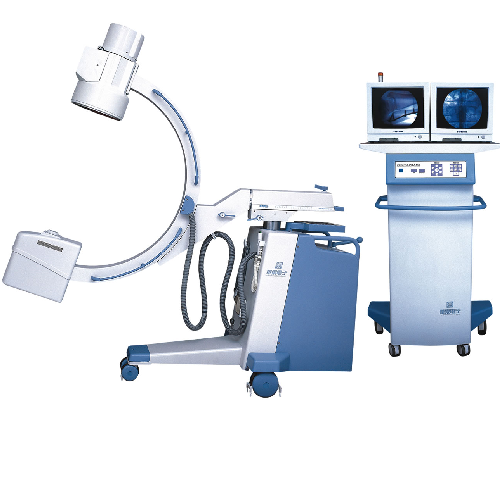

High Frequency Mobile C-Arm X-ray Imaging System - 副本

Inverter

110kV,3.5kW,40kHz

Operation mode

Fluoroscopy mode (KV Manual & Auto)

Radio graph Mode

Imaging System

Recursive Noise Redution

Images Storage

Range of rotation:360°

Mechanical Motion Specifications(C-Arm)

Vertical travel:0~400mm

Horizontal travel:0~200mm

Ranage of C-arm rotation Angle:

Horizontal: ±180°

Arc: +90°~－25°

Wag: ±12.5°

C-ram Dimension

Distance of Focal Spot to Image   Generator 1000mm

Depth in Are   630mm

Mobile Stand 1800mm×800mm×1850mm

Imaging System 750mm×530mm×1680mm

Standard Configuration

Mobile   Stand               1set

X-ray   Generator            1set

 9〞Image   Intensifier        1set

High   Resolution CCD Canera  1set

Digital   Noise Reduction System 1set

14〞High   Resolution Monitor 2set
