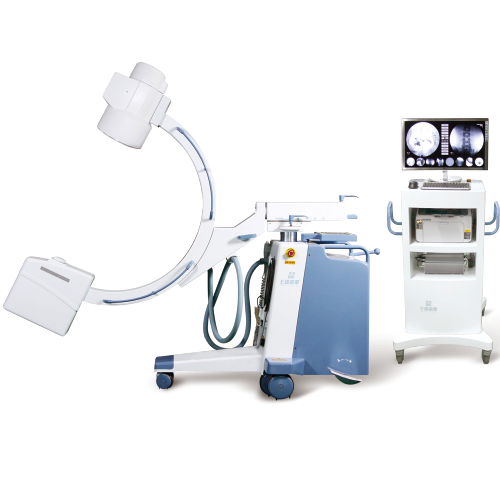

Digital HF & Mobile C-arm: Able for Fluoroscopy & Radiography

x-ray generator

3.5kw, 110kv, 40kHz

5kw, 120kv, 40kHz

3.5kw, 110kv, 40kHz

5kw, 120kv, 40kHz

X-ray tube

fixed anode, dual focus 0.6/1.5mm

rotating anode, dual focus 0.3/0.6mm

fixed anode, dual focus 0.6/1.5mm

rotating anode, dual focus 0.3/0.6mm

Anode thermal capacity

30KJ/40kHu

150KJ/200kHu

30KJ/40kHu

150KJ/200kHu

Fluoroscopy

40-110kv, 0.5-10mA

40-120kv, 0.5-10mA

40-110kv, 0.5-10mA

40-120kv, 0.5-10mA

Radiography

30-60mA, max. 80mA

20-80mA, max. 100mA

30-60mA, max. 80mA

20-80mA, max. 100mA

Image Storage

8 images storage

8 images storage

Thousands of images stored

Thousands of images stored

Dicom 3.0

None

None

Included

Included

PACS

None

None

compatible

compatible

Image intensifier

Thales brand, tri-mode in sizes of 4.5"/6"/9"

Thales brand, tri-mode in sizes of 4.5"/6"/9"

Thales brand, tri-mode in sizes of 4.5"/6"/9"

Thales brand, tri-mode in sizes of 4.5"/6"/9"

Monitor

two CRT 14" monitors

two CRT 14" monitors

one 23" LCD monitor

one 23" LCD monitor

Workstation

None

None

with

with
