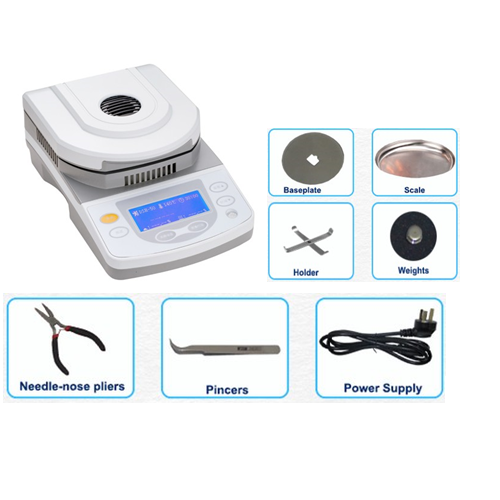

Moisture Analyzer

Product ID：MA-SH-10A MA-50A-5 MA-50A-1 MA-50A-10 MA-100A-1 MA-LHS16-A

Description

This series with high resolution lattice LCD back light, and adopting high precision thermal sensor. Halogen heating drying, and short test time.

Features

I. The supper high resolution back window matrix liquid crystal display (LCD), marking it easier to operate in the dark place, and the user will have more comfortable vision.

II. Touch-tone chain plate makes the operation easier.

III. The high precision heat insulation type sensor makes temperature for data acquisition reliable.

IV. The use of halide torch for heating and curing make worming more rapidly and test time shorter.

V. In the process of test, the dry state can be directly confirmed to speculate the finish time.

VI.It is equipped with automatic peeling function, it can measure immediately and continuously, and also measure accurately through the zero-drift correction.

VII. Installed with RS232 interface inside, the products can be directly connected to computer and printers etc.

VIII. The halogen drying method moisture analyzer can test the free water content of chemical raw materials, grain, mineral, biological product, food, pharmaceutical raw materials, paper, textile raw materials etc.

Technical Parameters:

Model	MA-SH-10A	MA-50A-5	MA-50A-1	MA-50A-10	MA-100A-1	MA-LHS16-A
Readability	10mg	5mg	1mg	10mg	1mg	1mg
Weighing range	10g	0~50g	0~50g	0~50g	0~100g	0~100g
Temperature range	50-180℃	50-180℃	50-180℃	50-180℃	50-180℃	50-180℃
Moisture content determination repeatability	0.5% (sample≥3g)	0.3% (sample≥3g	0.2% (sample≥3g	0.5% (sample≥3g	0.3% (sample≥3g	0.2% (sample≥3g)
Heat up time	1~99min,1minutes interval	1~99min,1minutes interval	1~99min,1minutes interval	1~99min,1minutes interval	1~99min,1minutes interval	1~99min,1minutes interval
Temperature program	Standard	Standard	Standard	Standard	Standard	Standard
Terminal control	Timing, Automatic	Timing, Automatic	Timing, Automatic	Timing, Automatic	Timing, Automatic	Timing, Automatic
Showing content	Moisture%, Solid%, Weight, Time, Data etc.	Moisture%, Solid%, Weight, Time, Data etc.	Moisture%, Solid%, Weight, Time, Data etc.	Moisture%, Solid%, Weight, Time, Data etc.	Moisture%, Solid%, Weight, Time, Data etc.	Moisture%, Solid%, Weight, Time, Data etc.
Pan diameter	100mm	100mm	100mm	100mm	100mm	100mm
Overall dimension	265160150mm	265160150mm	265160150mm	265160150mm	265160150mm	265160150mm
Net weight	5kg	5kg	5kg	5kg	5kg	8kg
Total weight	6kg	6kg	6kg	6kg	6kg	10kg
Heating source	Halide torch	Halide torch	Halide torch	Halide torch	Halide torch	Halide torch
