WB series 1mg Analytical Balance

Product ID: WB1003N WB1203N WB2003N WB2603N WB3003N WB5003N

Description:

The WB series analysis balances adopt electromagnetic balances sensor, equipped with characteristics such as high accuracy, well-adapted, linear four-point calibration, counting, unit converting and so on. Improve the traditional classification component circuit board to large digital integration, then the balances can have a higher stability and reaction speed, it also can adjust integration and sensitivity as user’s need.



This series balances also equipped with standard RS232C data interface which can connect with micro-computer, printer and the other device. It can be widely used in varies fields such as university, biological medicine, enterprise and public institution, quarantine inspection.



Features:

     1. The blue large backlighting LCD screen display (120*55 mm), completely display function.

     2. The windshield of all around antistatic coating can effectively shield the electrostatic interference,     ensure a clear vision.

     3. The electromagnetic force balance sensor.

     4. With automatic fault detection, linear four-point calibration, overload protection and other applications.

     5. Using VLSI digital integrated circuit board, is the guarantee of product precision.



Function:

     1. With a piece, unit conversion (metric carat, troy ounces, etc.), stability, zero tracking and other functions, easier to operate and reliable.

     2. Internal automatic calibration, the scales of more convenient operation, stable performance, accurate.

   3. The built-in RS232 standard interface can connect to the printer, computer etc.

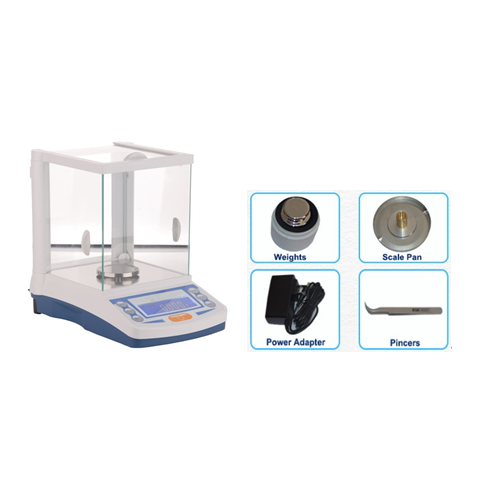

Standard accessories:

balance, scale plate, adapter, instruction manual, qualification certificate, warranty card, standard weight, cleaning cloth, brush and forceps.



Model

WB1003N

WB1203N

WB2003N

weighing range

0~100g

0~120g

0~200g

Readability

1mg

1mg

1mg

Pan Size

φ80mm

φ80mm

φ80mm

Output interface

Rs232C

Rs232C

Rs232C

Net weight

8kg

8kg

8kg

Package size

480*375*515mm

480*375*515mm

480*375*515mm

Work space height

240mm

240mm

240mm

Work space   height(mm)

350*215*340mm

350*215*340mm

350*215*340mm





























Model

WB2603N

WB3003N

WB5003N

weighing range

0~260g

0~300g

0~500g

Readability

1mg

1mg

1mg

Pan Size

φ80mm

φ80mm

φ80mm

Output interface

Rs232C

Rs232C

Rs232C

Net weight

8kg

8kg

8kg

Package size

480*375*515mm

480*375*515mm

480*375*515mm

Work space height

240mm

240mm

240mm

Work space   height(mm)

350*215*340mm

350*215*340mm

350*215*340mm
