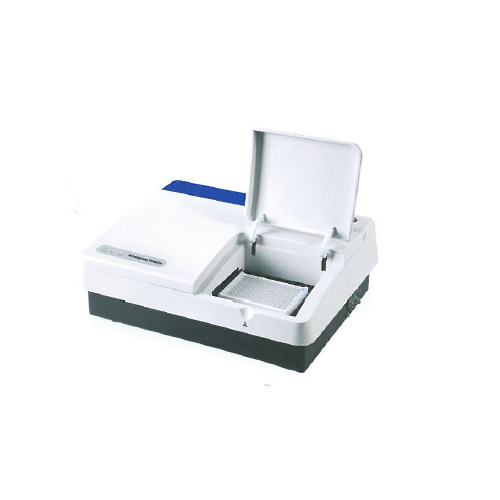

MICROPLATE READER

Features:

1.PC computer operation, convenience operation. External print reports, print patients with multi-format test report.

2.Humanized menu, support in English language.

3.Visible and flexible set plate, the position and quantity of blank, comparison, standard and sample can be set.

4.Single-board multi-item testing,96 kinds of quantitative or qualitative testing can be done simultaneously on the same plate, item wavelength can vary.

5.Automatic single/double wavelength examination, support many kinds of qualitative or measurable analytical models.

6.Large-capacity hard disk, store tens of millions testing results and call out or print out momentarily.

7.Arbitrary choice of open programming, reagents, reaction plate.

8.The instrument has a self-test and calibration function.

9.Comes with no less than 15 kinds of calculation methods

Specification:

1.Microplate Types: Flat bottom, U-shaped, V-shaped 96well plate

2.Measurement system:8 channel optical system

3.Wavelength range:400-750nm

4.Filter:405,450,492,630nm, and four optional

5.Vibration: Variable speed and time shaking mode

6.Reading range:0-4.0Abs

7.Repeatability:<0.3%

8.Stability: ≤±0.005Abs/10min

9.Difference of channels: ≤0.010Abs

10.Linear R: ≥99.9%

11.Reading speed:5sec single wavelength,10sec double wavelength

12.Interface: Serial port RS-232
