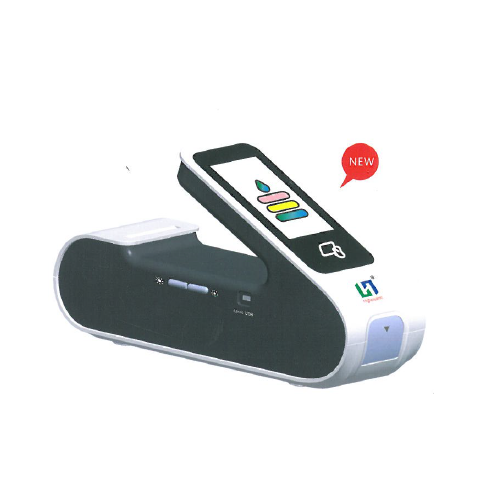

Portable ELISA Reader

Performance Features:

Portable elisa reader built in battery & thermal printer can print report;

Scan code or manual configure sample ID;

Friendly user Interface;

Measure with qualitative or quantitative;

Customized configure &delete. plate, blank, contract, standard, Sample position by easy click;

Open or closed to configure programmer, reagent plate;

Self-Auto calibration and self-test function;

Storage thousand data in memory, Convenient for history data Inquiry and statistics;

Scan and manual add STAT test item.

Technical index

Plate type: flat, round and v-bottomed, 8-well, 12-well plates

Test speed: Single wave 5 seconds, double wave 15 seconds

Measure systems: Single channel light with 4 filters

Data output: USB/Micro, USB/WIFI

Wave length: 400nm-750nm

Sensitivity: ≥0.01mg/l

Measure range: 0~4.0ABS

Correlation coefficient R: ≥99.9%

Stability: ＜±0.005A

Absorbance precision CV: ＜0.3%

Filters: 405, 450, 492, 630 (optional)

Detection system: Single channel silicon photodiode

Lamp source: LED

Reproducibility: Precision 0.25% at 1.0 OD at 450nm

Accuracy: 0.5% at 1.0 OD at 450nm

Dimensions (L*W*H): 303.5*92*169.5(mm)

Weight: 1.5kg
