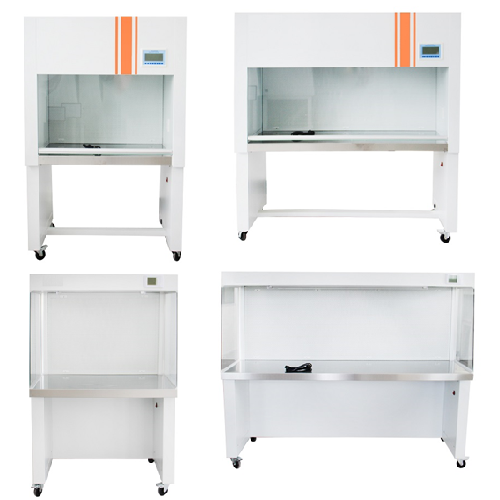

All-steel SW-CJ-series horizontal air supply laminar flow cabinet
Product ID：SW-CJ-series
Product features
1. Adopting arbitrary positioning sliding door system
2. The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
3. The lighting and sterilization systems are interlocked safely, and have the timing function of the ultraviolet lamp (except 1BU, 1CU)
4. Digital display LCD control interface, more user-friendly design
5. The vertical quasi-closed table top and the formation of a downward flow air curtain in the operation room can effectively prevent the input of external air and the operation area is clean
6. Equipped with HEPA high-efficiency air filter, with primary filter for preliminary filtration, which can effectively extend the high-efficiency filter
Model | SW-CJ-1G | SW-CJ-2G | SW-CJ-1B | SW-CJ-1C | SW-CJ-1BU （open） | SW-CJ-1CU （open） | |
Cleaning level | Class 100@≥0.5μM (US Federal 209E) | ||||||
Several colonies | ≤0.5pcs/dish·hour (Φ90mm culture plate) | ||||||
The average wind speed | 0.25~0.45m/s | ||||||
Noise | ≤62dB（A） | ||||||
Vibration half peak | ≤5μM (x, y, z direction) | ||||||
Illumination | ≥300LX | ||||||
Power supply | AC single phase 220V/50Hz | ||||||
Maximum power | 100W | 500W | 490W | 640W | 490W | 640W | |
Weight | 80Kg | 110kg | 90kg | 140kg | 90kg | 160kg | |
Work area size (W×D×H) | 700×410×580 | 1150××410×580 | 880×510×580 | 1370×510×580 | 900×510×600 | 1770×510×600 | |
Overall dimensions (W×D×H) | 860×590×1600 | 1310×590×1600 | 1040×690×1600 | 1530×690×1600 | 930×740×1440 | 1800×740×1440 | |
Applicable number | Single person single side | Double person single side | Single person single side | Double person single side | Single person single side | Double person single side | |
High efficiency filter specification and quantity | 680×565×50×① | 1130×565×50×① | 850×565×50×① | 1350×565×50×① | 830×560×50×① | 1700×560×50×① | |
Specification and quantity of fluorescent lamp/ultraviolet lamp | 12W×① 20W×① | 12W×① 30W×① | 12W×① 20W×① | 20W×① 36W×① | 12W×① 20W×① | 20W×① 36W×① | |
