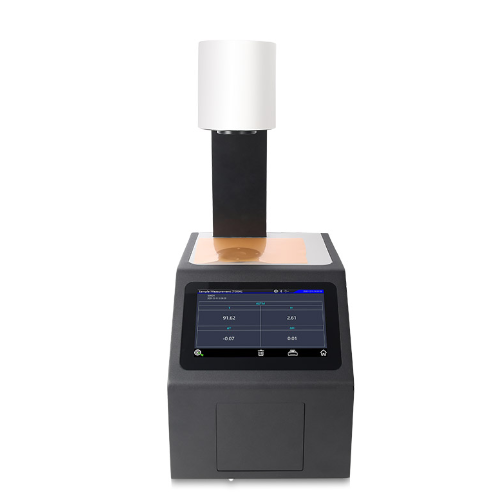

Haze Meter

Product ID:YH1600

YH1600 Color Haze Meter can easily realize ASTM D1003 non-compensation method, ISO 13468 compensation method, full transmittance and haze test. Through precise concave grating and 256-pixel CMOS detector, the transmittance curve of transmitted sample can be accurately collected, various chroma data of transmitted sample can be accurately output, and high-precision and repeatable transmittance, haze and chroma data measurement can be realized.



Advantages

1.Double standard ISO & ASTM

Can meet the test standard requirements of different users; meet the standards: ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136

2.Multiple observation light sources

The YH1600 colorimeter provides CIE LAB, XYZ, Yxy, LCh, s-RGB, βxy color space, as well as D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, DLF, TL83, TL84, TPL5, U30 observation light sources, which can meet the special measurement needs under different measurement conditions.

3.Easy operation and faster and more accurate measurement

The YH1600 Haze Meter is equipped with a large-size touch control screen, which is easy and convenient to operate. The 256 pixel dual array CMOS image sensor can realize high accuracy and repeatable transmittance and haze measurement. USB data output unit that interfaces with the laboratory system.

4.Compensation port to make the measurement data more accurate

Meet ASTM D1003 non-compensated method, ISO 13468 compensated method, full transmittance, haze test, provide more accurate test results

5.Dynamic measurement

Independent light source detector and temperature sensor to monitor the light source and environmental changes at all times to ensure reliable test data

6.Convenient measurement and wide sample adaptation

Open measurement area for vertical and horizontal testing to accommodate more samples under test

7.Quality management software

It provides powerful software for measuring and analyzing haze, color and light transmittance, which is suitable for quality monitoring and tabulating management of haze, light transmittance and color data in various industries. Data the management of users on the PC computer, compare the haze, transmittance and color differences, generate test report forms, facilitate customer customization and management.



Application

YH1600 Haze Meter is widely used in glass processing, plastic processing, film, display screen processing, packaging industry, liquid analysis and other aspects.



Technical Specification

Geometry

Transmittance: 0/D (parallel illumination,   diffuse receiving); Conform to the standards: ASTM D1003/1044, ISO   13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308,   JIS K7105, JIS K7361, JIS K 7136

Characteristic

The instrument can easily realize ASTM D1003   non-compensated method, ISO 13468 compensation method, full transmittance,   haze test. The instrument can accurately collect the transmittance curve of   the transmitted sample, and can accurately output various chroma data of the   transmitted sample. High hardware configuration, open measurement area,   vertical, horizontal testing. It is widely used in glass processing, plastic   processing, film, display screen processing, packaging industry, liquid   analysis and other aspects.

Integrating sphere size

Φ 154 mm

Light source

400 ~ 700 nm combined LED light source   (wavelength scalable customized)

Spectrophotometric Mode

Concave grating

Sensor

256-pixel dual array CMOS image sensor

Wavelength range

400 ~ 700 nm (wavelength scalable customization)

Wavelength interval

10 nm

Half bandwidth

10 nm

Measurement Range

0-100%

Measuring aperture

Φ20 mm/Φ15 mm/Φ8 mm/Φ4 mm (select single   aperture)

Sample size

Thickness less than 170 mm

Color space

CIE LAB, XYZ, Yxy, LCh, s-RGB, βxy

Chromatic formula

ΔEab, ΔE94, ΔEcmc (2:1), ΔEcmc (1:1), ΔE00

Other chromaticity index

Haze (ASTM D1003/1044, ISO 13468), Transmittance   T (ISO), Transmittance T (ASTM), WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI   (ASTM D1925, ASTM 313), Absorbance, Cobalt Platinum Index, Gardner Index

Observer angle

2 °/10 °

Light source

D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30

Display Data

Spectrogram, sample chroma value, color   difference/graph, color graph, color simulation, pass/fail result

Measurement time

About 1.5s

Resolution

0.01 unit

Repeatability

Φ20 mm aperture, less than 0.05 (after instrument   preheating and correction, test the standard nebulizer with the nebulization   of about 30 at an interval of 5s for 30 times of standard deviation)

Inter-instrument Error

Φ20 mm aperture, less than 0.4 (after instrument   preheating and correction, test the standard deviation between the standard nebulizer   of nebulization and the reference value at an interval of 5s)

Dimensions

Length * Width * Height = 290*211*511 mm

Weight

Approx. 7.6 kg

Power supply

24 V DC, supplied by 3A power adapter

Illuminant Life Span

> 3 million measurements in 5 years

Display

TFT True Color 7-inch, Capacitive Touchscreen

Interface

USB, Print Serial, Bluetooth

Data Storage

5,000 samples, 20,000 samples

Language

English

Operating Temperature

0 to 40 ° C (32 to 104 ° F)

Storage Temperature

- 20 – 50 ° C (-4 – 122 ° F)

Standard Accessories

Power adapter, user manual, quality management   software (download), USB cable, 0% calibration box, measuring aperture

Optional Accessories

Micro printer, Test Fixture, Standard Haze Sheet,   Footswitch

Notes:

Subject to change without notice
