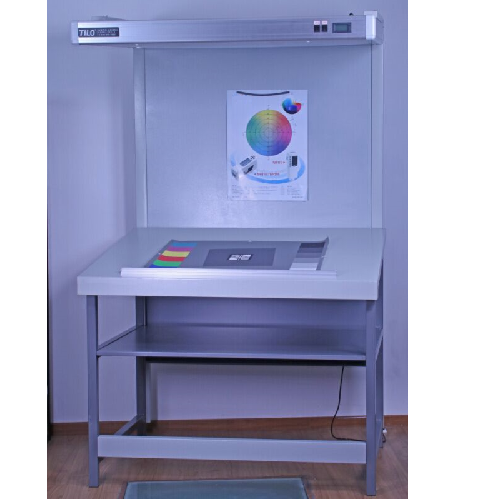

Color Viewer Color Light Box Table

Product ID:CC120

Common Light source: D65, D50, U30

Replacement light source: TL84, UV, CWF, TL83

Color Controller Color Viewer color light box is widely applies to printing industry, furnishings and color matching of the printing ink industry etc. It is a necessity for those industry to control the colors and qualities of products. This Color Viewer color light box supplies D65, D50, U30 light sources. This machine was controlled by microcomputer, which allows the rapid conversion between each light source. The Color Viewer matching box also had the function of display the running time of each light source.

Light source

In different condition, the object may present different spectrum with same color. Our vision result of the colors will be differently, thereby it will affect us to judge the color accurately by our naked eyes. While according to our customer’s demand, the Color Viewer, which is the international standard, can provide the right light source you need when you check the colors, such as D65, D50, TL84, UV, U30, CWF etc. The life-span of lamp depends on the accumulated running time and the turn-on times. When the lamp becomes aging, light instability or the two sides turn black, please replace the lamp timely, otherwise, the checking result will be affected.

Technique Parameter

Light source: imported fluorescent lamp

36W LB-D65 *4

36W LB-D50 *4

36W LB-U30 *4

Light Source

D65

D65 & D50

D65 & D50 & U30

Tubes

D65/6500K/36W

D65/6500K/36W

D50/5000K/36W

D65/6500K/36W

D50/5000K/36W

U30/3000K/36W

Power

 AC220V 50HZ

 AC220V 50HZ

 AC220V 50HZ

Workable Size (cm)

 133*97

 133*97

 133*97

Size (cm)

 133*102*216

 133*102*216

 133*102*216
