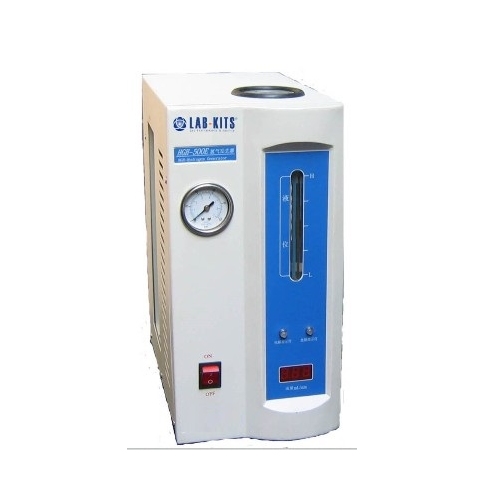

High-purity Hydrogen Generator

Product ID:AG-HGH-300E/500E

Features:

1)         It is easy to operate, i.e. turning on power to produce hydrogen gas. It has a stable output pressure and LED digital display of flow rate that is visual and striking.

2)         It can operate continuously and intermittently with distilled water.

3)         It combines liquid storage, hydrogen electrolytic producing and oxygen discharging into one. And it has a low pool temperature and a long service life.

4)         It is equipped with a device that can prevent against liquid returning.



Parameters:

Model

AG-HGH-300E

AG-HGH-500E

Purity

99.999% (relate to oxygen content)

Output flow rate

0 -300 ml/min

0 -500 ml/min

Maximum power

150

180

Output pressure

0.4Mpa

Power supply

AC 220V  50Hz

Ambient temperature

10-40   relative   humidity<85%

Conditions

No heavy dust or corrosive gases

Maxim power   consumption

180W

Dimension

360×190×380mm   (L*W*H)

Weight

12Kg

14Kg
