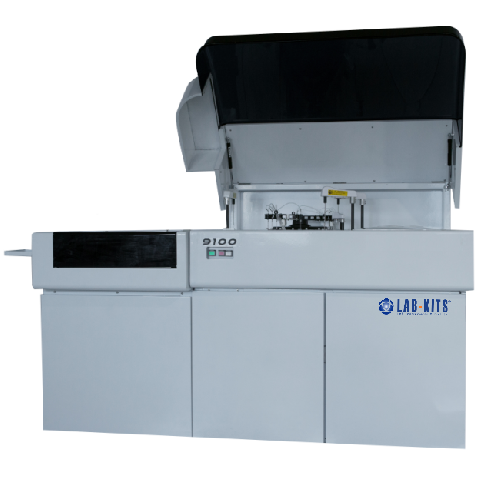

Automatic Biochemistry Analyzer

Engine Performance

The instrument type: Automatic random choose discrete; Emergency priority detection

testing speed: 800T/H, 1400 T/H with ISE

test method: End point method, two points, rate method and the immune turbidimetry/double wavelength/wavelength single wavelength method of linear and nonlinear calibration

Test project: conventional biochemical, specific protein, electrolytes, drugs, drug abuse, urine, cerebrospinal fluid, etc

analysis item at the same time:  90 photometric method, three electrode method.

Sample System

Track the style in this frame: Once every eight samples, can be on 176 samples, sample in a row

Sample plate: 27 samples, support bar code scanning (optional), independent refrigeration (4-12 ℃), to ensure quality control and calibration at any time for 24 hours a day

Sample size: 1.5 mu - 35 mu, 0.1 mul

Sample: needle with bubbles and plugging needle, liquid level detection and collision safety protection function, has the function of internal high-pressure flushing, 1.5 mu minimum sample weight, 1.5 l - 35 mu, 0.1 mu l l progressive

Sample processing: automatic dilution, automatic measurement

Emergency samples: random insertion

Reagent System

The reagent disk: 90 reagents, Double plate design, Direct load70ml, 35ml, 20mlBottom reagent bottle, With a maximum of 4 reagent test function

Reagent refrigerated: 4-12 ℃

reagent has 24 hours continuous cold storage refrigeration function, Parr stick refrigeration

Reagent Volume: 15μl-300μl, 0.5μlstep,

When testing can be deducted automatically reagent blank

probe: Two, with functions of automatic liquid level detection and collision safety protection, among them, the lining with functions of high pressure flushing, automatic recording reagent insufficient margin, or cleaning reagent needle tip function: fully automatic water inside and outside wall cleaning, take all reagent pollution rate < 0.08% position fixed support bar code scanning (optional)

Reaction System

reaction disc: 160new reaction cups, 6mmlight path, Hard plastic colorimetric cup, (uv)Penetrating well, Acid-resistant, resistant to corrosion

The reaction liquid volume150μl -300μl

reaction temperature: 37℃, The temperature accuracy±0.1℃

constant temperature system: Is a maintenance free water bath

rabbling mechanism: Two separate mixing needle, Laser nano polishing,

Automatic frequency conversion technology

Reaction cup clean: Eight steps after the determination of samples, the instrument adopts advanced automatic cleaning, high pressure vacuum suction fluid, warm water wash, cleaning effect is better

Reaction cup 2 kinds of cleaning fluid:

1 kind of acid, alkali, vacuum suction fluid, automatic dilution

liquid waste disposal: High and low concentration waste classification processing,

With high concentration waste liquid alarm

Optical System

Light the lamp: halogen tungsten lamp, lifetime2000h

After the grating spectrometer, 12 wavelengths, 340-800nm

detector: photodiode array

Spectroscopic methods: Cluster type point source of light, after holographic concave grating ordinary, spectroscopic technique

Calibration and Quality Control

Calibration: Nine calibration formula, linear (A single point, two points, and more,

Logit-Log4p, Logit-Log5p, The sample curve, exponential function, polynomial, parabola

calibrating period: Automatically set or set as needed

Quality control rules: Westgard Quality control rules,

Cum μ Lative sum check the cumulative and rules,

Twin plot Three, support for multiple levels quality control Three,

support for multiple levels quality control

Quality control methods: Quality control, quality control in the day, days of real-time quality control

Operating System

Computer operating system: windows 2000above, multilanguage operating system

data processing: Large capacity storage analysis sample test results, display, Store and print the response curve

Print Report: Edit and print the complete language report, Optional print content format, Editable, Support network report printing

system interface: network port

Work Environment

power: AC (110-220) ±22V, 50HZ (60HZ) ±1HZ

overall power consumption: ≤2000VA

environment temperature;15℃-30℃

The maximum relative temperature: 85%

Host Volume: 1860(L)×880(W)×1200(H)
