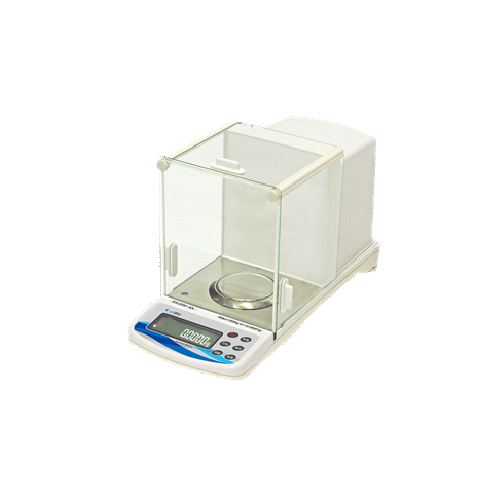

Semi-microelectronic analytical balance

Product ID:ESJ203-S ESJ205-S ESJ208-S

Features

Rear-mounted electromagnetic force sensor, three-door large windshield, spacious weighing room, easy to operate.

Adopt internationally recognized high sensitivity, high stability rear-mounted electromagnetic force sensor technology to obtain higher product performance.

Φ90mm stainless steel weighing plate, can be placed in a large container, easy to use.

Built-in standard stainless-steel weight

LCD backlit display. The readings are clear, the light and dim environment can be switched at will to protect the vision.

High precision, fast weighing, accurate and reliable, simple operation and complete functions can meet the needs of various laboratory quality analysis.



Function

0.01mg, 0.1mg, double-weighing, automatic switching.

Automatic internal calibration, automatic timing calibration, automatic temperature change calibration. Eliminate drift errors caused by temperature, environment, time and other factors.

Overload/underload alarm, temperature compensation, full range peeled cumulative / regressive.

A variety of weighing unit conversion and data output: grams, carats, ounces, etc.

Weighing method: counting, percentage weighing, etc., suitable for different weighing.

Equipped with RS232 output interface, can connect with micro-computer, printer and the other device.

Density measurement (optional density device accessories including software).

Under hook weighing (optional).



Technical parameters

Model

Capacity

Readability

Repeatability

Linearity

Pan size

Weight

Dimensions

ESJ203-S

30g/200g

0.01mg/0.1mg

±0.03mg/0.1mg

±0.05mg/0.1mg

Φ90mm

9.1kg

460×205×280mm

(190×155×210mm)

ESJ205-S

50g/200g

0.01mg/0.1mg

±0.03mg/0.1mg

±0.05mg/0.1mg

ESJ208-S

80g/200g

0.01mg/0.1mg

±0.03mg/0.1mg

±0.05mg/0.1mg
