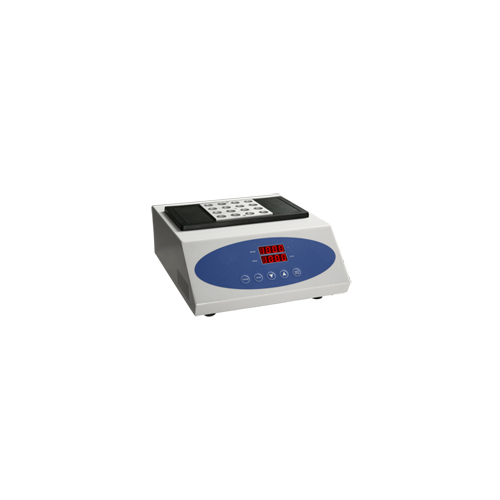

Dry Bath Incubator

Dry Bath Incubator
LAB-01080-00

The Dry Bath Incubator is a microprocessor-controlled product. With this technique, more stable and accurate temperature control is achieved.

Features
1. LED display
2. Current temperature and count down time display
3. Metal blocks free of sample counter-pollution
4. Easy replacement, cleaning and disinfecting of metal blocks
5. Built-in over-temperature protection
6. Calibrating temperature discrepancy
7. Buzzer alarm when temperature control ends
8. Only heating design and Custom blocks are available

Specification
1. Temperature control range: from 5
 above ambient to 150
2. Time required for temperature to increase from 40
  to 150 : ≤30 min
3. Temperature control discrepancy: ≤±0.5

4. Display discrepancy: ±0.1

5. Homogeneity of block temperature: ≤± 0.5

6. Maximum heating power: 200W
7. Dimension: 280 x 240 x 110 mm
8. Time Range: 99 h 59 min

Dry Bath Blocks

Type

Parameter

Capacity

Dimension (mm)

BK01

6 mm

49

96 x 96 x 49

BK02

7 mm

49

96 x 96 x 49

BK03

10 mm

25

96 x 96 x 49

BK04

12 mm

25

96 x 96 x 49

BK05

13 mm

25

96 x 96 x 49

BK06

15 mm

12

96 x 96 x 49

BK07

15 mm

16

96 x 96 x 49

BK08

16 mm

12

96 x 96 x 49

BK09

16 mm

16

96 x 96 x 49

BK10

19 mm

12

96 x 96 x 49

BK11

19 mm

16

96 x 96 x 49

BK12

20 mm

9

96 x 96 x 49

BK13

26 mm

9

96 x 96 x 49

BK14

28 mm

4

96 x 96 x 49

BK15

40 mm

4

96 x 96 x 49

BK16

0.5 ml

49

96 x 96 x 49

BK17

1.5 ml

25

96 x 96 x 49

BK18

2.0 ml

25

96 x 96 x 49
