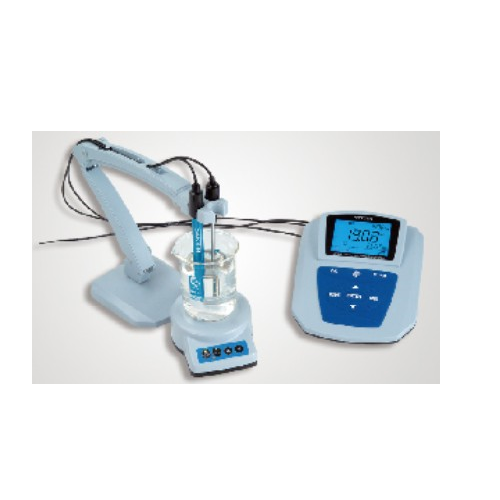

Benchtop calcium ion meter

Display   unit

pCa,   mol/L, mg/L, ppm

Accuracy

±0.01   pCa

Input   current

≤2×10^-12   A

Input   impedance

≥1×10¹²   Ω

Stability

±0.01   pCa/3h

Temp.   compensation range

(0   to 50) ℃ ( automatic or manual )

mV

Measuring   range

-1999.9   mV to 0 to 1999.9mV

Resolution

0.1mV

Accuracy

±0.1%   FS

Temperature

Measuring   range

-10℃to   110℃

Resolution

0.1℃

Accuracy

(5   to 60)℃ range:±0.5℃   other range:±1.0℃

Other   Technical Parameters

Data   storage

600   groups

Storage   content

Measuring   value serial number, measuring value, temperature, ATC or MTC state,   measuring date and time

Power

DC9V/300mA

Communication   connector

RS-232

Size   and weight

160   × 190 × 70mm/880g

Quality   and safety certification

ISO9001:2000,   CE and CMC

Working   Condition

Environment   temperature

(5   to 35) ℃

Environmental   humidity

≤85%

IP   rating

IP54   Dustproof and waterproof

2.   Model 602 flexible electrode holder

1unit

3.   Model 901 intelligent stirrer

1unit

4.   B628 stir bead

3   pcs

5.   Model CA501 calcium ion combination electrode

1   pc

6.   CA502 calcium electrode inner solution (30mL)

1   btl

7.   CA503 calcium electrode measuring head

2pc

8.   Tool for filling calcium electrode inner solution

2   units

9.   Model MP500 temperature electrode

1pc

10.   pCa 1.00 standard solution (100mL)

2   btls

11.   9V power adapter (meter use)

1   pc

12.   6V power adapter (stirrer use)

1   pc

13.   AA battery

4   units

14.   RS-232 communication cable

1pc

15.   ELE-518 communication software CD

1   unit

16.   Operation manual

1   unit

17.   Brief operation instruction

1unit

18.   Packing List

1pcs
