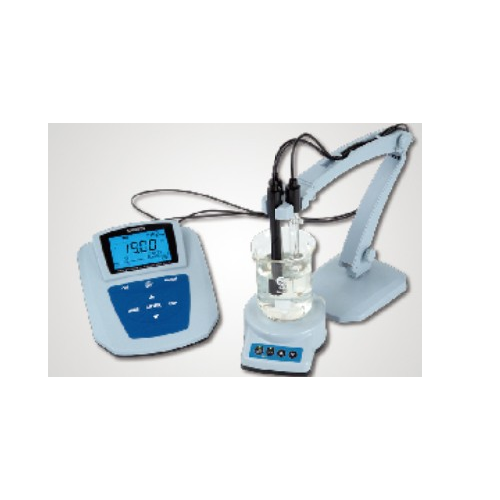

Benchtop fluoride ion meter
Benchtop fluoride ion meter
Model ID: ELE-519
Features:
Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
Fluorion electrode range : 1~6 pF (10-1~10-6 mol/L)
Equips fluorion electrode, reference electrode and temperature electrode.
Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
Meter has the only product serial number.
Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.
Specifications:
Fluoride Ion | Measuring range | Meter:(0.00 to 9.00) pF,connect meter with electrode:(1.00 to 6.00) pF |
Display unit | pF, mol/L, mg/L, ppm | |
Accuracy | ±0.01 pF | |
Input current | ≤2×10-12 A | |
Input impedance | ≥1×1012 Ω | |
Stability | ±0.01 pF/3h | |
Temp. compensation range | (0 to 50) ℃ ( automatic or manual ) | |
mV | Measuring range | -1999.9 mV to 0 to 1999.9mV |
Resolution | 0.1mV | |
Accuracy | ±0.1% FS | |
Temperature | Measuring range | -10℃ to 110℃ |
Resolution | 0.1℃ | |
Accuracy | (5 to 60)℃ range:±0.5℃ other range:±1.0℃ | |
Other Technical Parameters | Data storage | 600 groups |
Storage content | Measuring value serial number, measuring value, temperature, ATC or MTC state, measuring date and time | |
Power | DC9V/300mA | |
Communication connector | RS-232 | |
Size and weight | 160 × 190 × 70mm/880g | |
Quality and safety certification | ISO9001:2000, CE and CMC | |
Working Condition | Environment temperature | (5 to 35) ℃ |
Environmental humidity | ≤85% | |
IP rating | IP54 Dustproof and waterproof |
Standard kits:
1. Model ELE-519 fluoride ion concentration meter | 1set |
2. Model 602 flexible electrode holder | 1unit |
3. Model 901 intelligent stirrer | 1unit |
4. B628 stir bead | 3 pcs |
5. Model F502 fluoride ion electrode | 1 pc |
6. Model 6211-M reference electrode | 1 pc |
7. Model MP500 temperature electrode | 1pc |
8. pF1.00 standard solution (100mL) | 1 btl |
9. 9V power adapter (meter use) | 1pc |
10. 6V power adapter (stirrer use) | 1 pc |
11. AA battery | 1 pc |
12. RS-232 communication cable | 1 pc |
13. ELE-519 communication software CD | 4 units |
14. Operation manual | 1pc |
15. Brief operation instruction | 1 unit |
16. Packing List | 1pcs |
