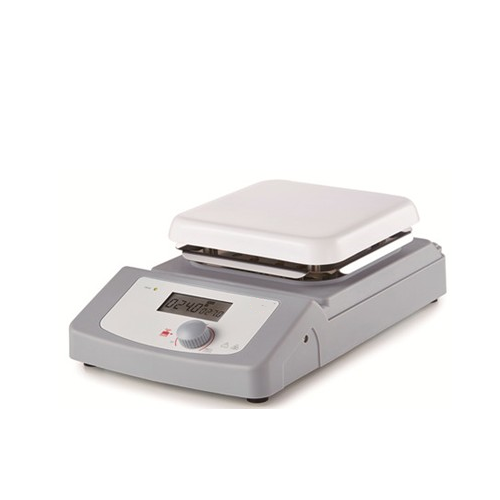

Hotplate Magnetic Stirrer

Work plate Dimension

140x140mm

Work plate material

Aluminum   cover with ceramic coating

Motor   type

Brushless   DC motor

Motor   rating input

2.4W

Motor   rating output

1.8W

Power

510W

Heating   output

500W

Voltage

100-120/200-240V    50/60Hz

Stirring   positions

1

Max.   stirring quantity [H2O]

5L

Max. magnetic bar[length]

50mm

Speed range

200-1500rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room temp.+5°C - 380°C

Over heat Protection

420°C

Temperature display accuracy

±1°C

External temperature sensor

PT1000 (accuracy ±0.5°C)

Control accuracy of sensor

±20rpm

Protection class

IP21

Dimension [W x D x H]

320x180×108mm

Weight

2.2kg

Permissible ambient   temperature and humidity

5-40°C 80%RH
