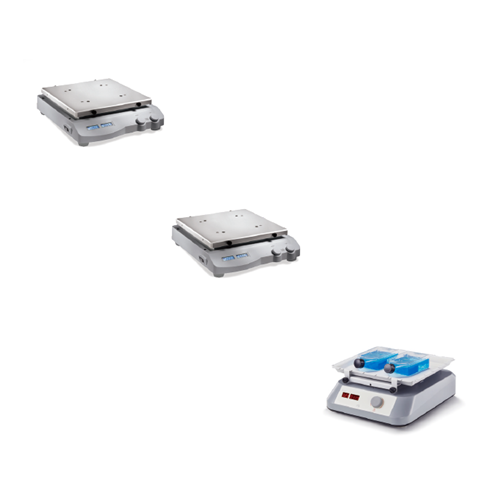

LCD Digital Linear Shaker
Model ID: SK-L330-Pro, SK-L180-Pro, SK-L180-S
SK-L330-Pro, SK-L180-Pro Features
• Max. load capacity is 7.5kg(L330) and 2.5kg(L180) with platform
• Double LCDs for independent display of time and speed
• Wide range of platforms for use with a variety of vessels
• Maintenance- free brushless DC motor
• Over speed detection and protection
SK-L180-S Features
• Max. load capacity is 3kg with platform
• Double LEDs for independent display of time and speed
• Speed range of 40-200 rpm
• Wide range of platforms for use with a variety of vessels
Technical parameters
Specifications | SK-L330-Pro | SK-L180-Pro | SK-L180-S |
Amplitude | 10mm | 4mm | 20mm |
Max. load capacity (With platform) | 7.5kg | 2.5kg | 3kg |
Motor type | Brushless DC motor | Brushless DC motor | DC motor |
Motor input power | 28W | 28W | 16W |
Motor output power | 15W | 15W | 10W |
Speed range | 100-350rpm | 100-350rpm | 40-200rpm |
Speed display | LCD | LCD | LED |
Timer display | LCD | LCD | LED |
Time settings range | 1min-19h59min | 1min-19h59min | 1min-19h59min |
Voltage | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz |
Power | 30W | 30W | 20W |
Weight | 13.5kg | 8.1kg | 3.1kg |
Permissible ambient temperature and humidity | 5-40oC, 80%RH | 5-40oC, 80%RH | 5-40oC, 80%RH |
Dimension[W×D×H] | 370×420×100mm | 300×340×100mm | 270×330×110mm |
Protection class | IP21 | IP21 | IP21 |
Data connector | RS232 | RS232 | - |
